LM8040-XLE-FL1
Longmem

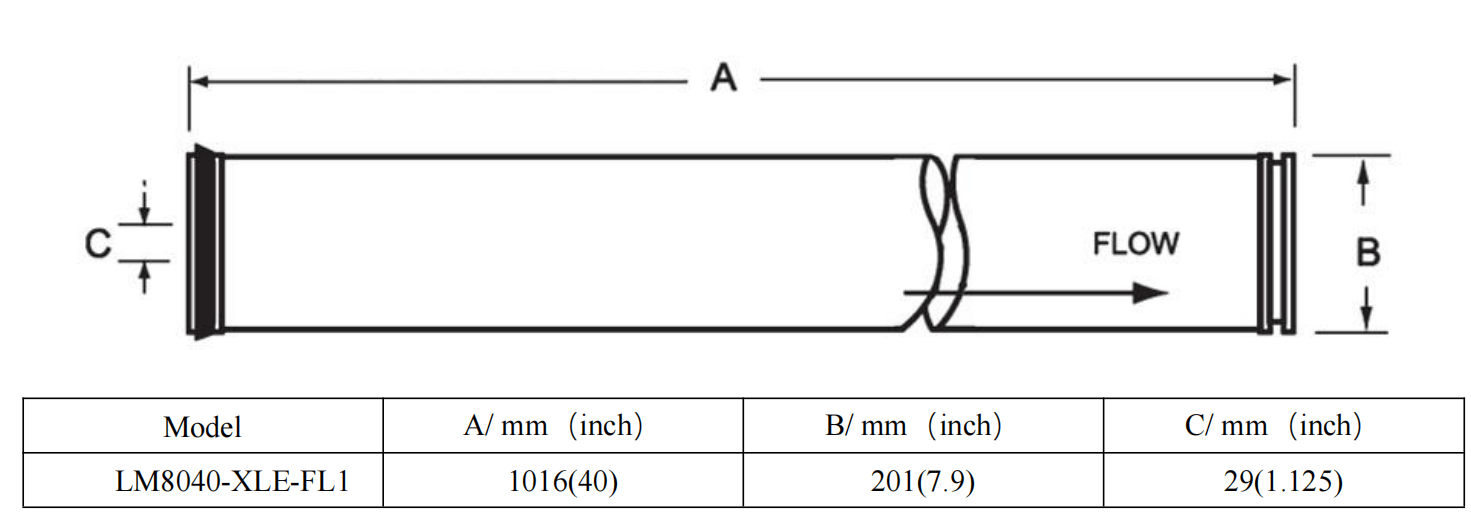

40"x7.9"x1.125"
15kg
Carton, OEM/ODM
7-14 days
ISO9001,ISO50001,GJB9001C,EAC,HALA,NSF
Accept
Residential,Commercial,Industrial Water Treatment and etc.
LM8040 indicates the manufacturer brand of Jiangsu Longmem Technology Co., Ltd and the size of this reverse osmosis membrane element
The LM8040-XLE-FL1 is a specific model of extreme low energy reverse osmosis (RO) membrane element. It is designed to provide high performance and reduced energy consumption in water treatment applications.
The LM8040-XLE-FL1 membrane element features advanced technology that allows for separation of impurities from water at significantly lower operating pressures compared to traditional RO membranes. This results in reduced energy requirements and increased overall system efficiency.
The membrane element is constructed using thin polymeric sheets with microscopic pores that selectively allow water molecules to pass through while rejecting dissolved salts, contaminants, and other impurities. This ensures high-quality treated water while minimizing waste.
The LM8040-XLE-FL1 membrane element offers improved performance in terms of both water recovery rate and energy efficiency. It can be used in a variety of applications such as residential, commercial, and industrial water treatment, brackish water desalination, wastewater treatment, and more.
By utilizing the LM8040-XLE-FL1 extreme low energy RO membrane element in your reverse osmosis system, you can benefit from higher water recovery rates and lower operating costs due to reduced energy consumption.
RO Membrane Film
RO Membrane Element
The production of reverse osmosis (RO) membrane elements involves several steps:
The first step is to create a thin, flat sheet of the RO membrane material. This is done by spreading a liquid polymer solution onto a casting surface, such as a glass plate or a rotating drum. The solution is then allowed to dry, forming a solid thin film.
After the casting process, the thin film is treated with chlorine gas or another oxidizing agent to improve its chemical resistance and remove any impurities.
The chlorine-treated thin film is then sintered by heating it at high temperatures. This step helps to further enhance the membrane's chemical stability and mechanical strength.
A mesh-like spacer material is applied on top of one side of the sintered membrane sheet. This spacer creates channels for water flow through the element and helps maintain separation between layers during assembly.
Multiple layers of spacer-applied membranes are rolled together into a tightly wound spiral configuration, with each layer separated by feed spacers that ensure proper water flow distribution throughout the element.
The ends of the spiral-wound element are capped off with end caps made from various materials like plastics or metals (e.g., epoxy resin). These caps provide structural support and prevent leakage at the ends of the element.
Each RO membrane element undergoes rigorous testing to ensure its performance meets industry standards before it can be approved for commercial use.
It's important to note that this process may vary slightly depending on specific manufacturing techniques used by different companies or variations in product designs.

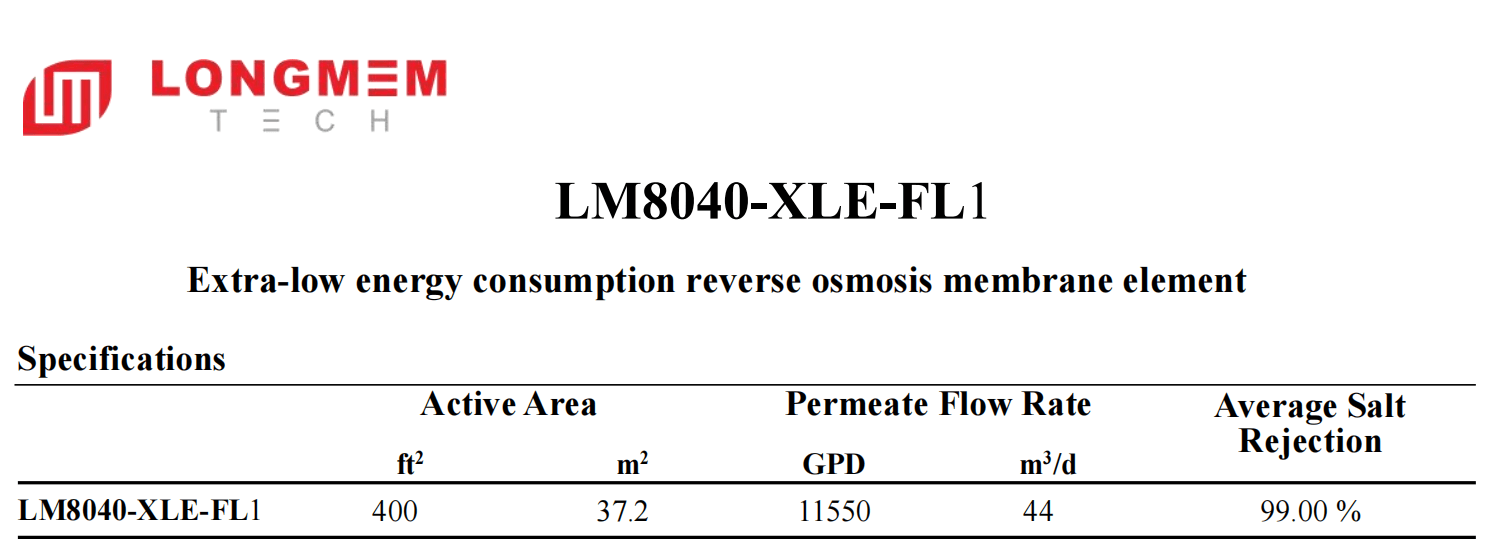

LM8040-XLE-FL1-RO MembraneSpecification.pdf

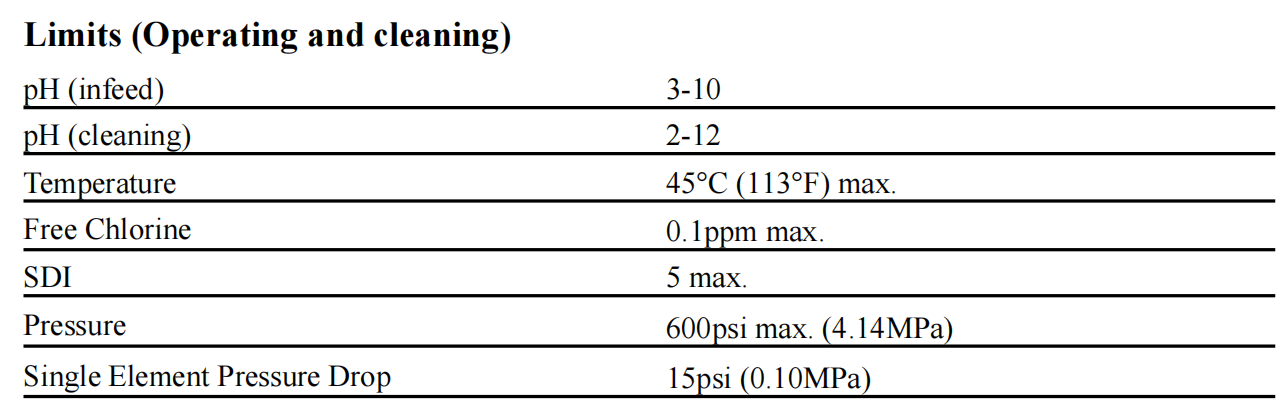

Test conditions: 500ppm (NaCl) water, 25°C (77°F); 100psi (0.69MPa);
15% recovery
Permeate flows variation: +/-15%
Always keep new elements in the original packaging
Avoid exposure to direct sunlight
Avoid exposure to chlorine and oxidizing agents
3-year warranty
Oxidation damage is not covered under warranty
Keep elements moist at all times after initial wetting
The initial permeate (first hour) must be discarded
During prolonged system shutdowns, membrane elements must be immersed in preservative solution.
The solution must be rinsed out before operation starts again
The LM8040-XLE-FL1 extreme low energy reverse osmosis membrane element offers several advantages over traditional RO membranes. Some of the key advantages include as follows:
The LM8040-XLE-FL1 membrane element operates at significantly lower pressures, resulting in reduced energy requirements. This can lead to substantial cost savings in terms of electricity consumption.
The advanced design of the 8040-XLE-FL1 allows for a higher water recovery rate, meaning more treated water is produced from the feed water source. This can be especially beneficial in areas with limited freshwater resources or high costs associated with wastewater disposal.
The lower operating pressures and higher water recovery rates offered by the LM8040-XLE-FL1 membrane result in increased overall system efficiency. This means that less waste is generated and more purified water is produced for a given amount of input energy.
The LM8040-XLE-FL1 membrane element has improved fouling resistance compared to conventional RO membranes.This means that it is less prone to clogging and fouling by contaminants, resulting in longer membrane life and reduced maintenance requirements.
The LM8040-XLE-FL1 membrane element effectively removes dissolved salts, contaminants, and imp from water, ensuring high-quality treated water. It can remove a wide range of contaminants including heavy metals, bacteria, viruses, and organic compounds.
The LM8040-XLE-FL1 membrane element can be used in various applications such as residential drinking water systems, commercial and industrial water treatment processes, brackish water desalination plants, wastewater treatment facilities, and more.
The LM8040-XLE-FL1 membrane element is designed for easy installation and integration into existing reverse osmosis systems. It is compatible with most standard RO system configurations.
Overall, the LM8040-XLE-FL1 extreme low energy reverse osmosis membrane element offers significant advantages in terms of reduced energy consumption, improved system efficiency, high recovery rates, enhanced fouling resistance,and production of high-quality treated water. These benefits make it an excellent choice for a wide range of water treatment applications.
The LM8040-XLE-FL1 extreme low energy reverse osmosis membrane element can be applied in various water treatment applications, including:
The membrane element can be used in home RO systems to provide high-quality drinking water.
It is suitable for commercial and industrial applications that require the removal of contaminants from water, such as food and beverage production, pharmaceutical manufacturing, and electronics manufacturing.
The LM8040-XLE-FL1 membrane element is designed to treat brackish water sources with lower energy requirements compared to traditional RO membranes.
It can be used in wastewater treatment plants to remove impurities from wastewater before reuse or discharge.
The membrane element can help remove salts and other contaminants from agricultural or irrigation water sources, ensuring the quality of the irrigation supply.
It can be incorporated into municipal drinking water treatment plants to produce clean and safe drinking water for communities.
The LM8040-XLE-FL1 membrane element is suitable for process waters in various industries like power generation, chemical processing, textiles, pulp and paper manufacturing, etc., where high-quality treated water is required for efficient operation.
Overall, the LM8040-XLE-FL1 extreme low energy reverse osmosis membrane element has versatile applications across residential, commercial,and industrial sectors where efficient removal of contaminants from a feedwater source is essential.
While the LM8040-XLE-FL1 Extreme Low Energy Reverse Osmosis Membrane Element is a highly efficient and reliable product, there are a few warnings and considerations to keep in mind:
It is crucial to install the membrane element correctly, following the manufacturer's guidelines and instructions. Improper installation can lead to reduced performance or damage to the membrane.
The quality of the feed water should be within the recommended limits specified by the manufacturer. High levels of suspended solids, organic matter, chlorine, or other contaminants can potentially damage or foul the membrane.
Brackish water contains various minerals and salts that can accumulate on the surface of the membrane over time, leading to fouling or scaling issues. Regular maintenance and cleaning procedures should be implemented to prevent these problems.
It is important to ensure that the membrane element is compatible with the chemicals used in the feed water or cleaning solutions. Some chemicals may degrade or damage the membrane, leading to reduced performance or premature failure.
The membrane element should be operated within the recommended pressure and temperature limits specified by the manufacturer. Operating outside of these limits can negatively impact performance and longevity.
Proper maintenance is essential for optimal performance and longevity of the membrane element. This includes routine cleaning, monitoring of operating parameters, and replacement of worn-out parts as necessary.
If you are unsure about any aspect of installing, operating, or maintaining the LM8040 Reverse Osmosis Membrane Element, it is recommended to seek professional assistance from a qualified technician or water treatment specialist.
By following these warnings and guidelines, you can maximize the lifespan and efficiency of your brackish water reverse osmosis membrane elements.
There are several reasons why you choose to cooperate with Jiangsu Longmem Technology Co., Ltd.:
Jiangsu Longmem Technology Co., Ltd. has a wealth of experience in the industry specialied in water treatment technologies and solutions. They have a team of experts who possess extensive knowledge and expertise in their field.
The company is known for its advanced technological solutions for water treatment, including membrane filtration systems, reverse osmosis, and other cutting-edge technologies. By cooperating with them, one can benefit from state-of-the-art equipment and solutions.
Jiangsu Longmem Technology Co., Ltd. offers customized solutions tailored to the specific needs of their clients. They take into account various factors such as water quality, quantity, and budget constraints to provide effective and efficient solutions.
The company is committed to providing high-quality products and services to its customers. They adhere to strict quality control measures throughout the production process, ensuring that their products meet international standards.
Jiangsu Longmem Technology Co., Ltd.'s customer support team is dedicated to providing prompt assistance and after-sales services to their clients around the world. This ensures that any issues or concerns are addressed promptly.
The company has built a strong reputation in the industry for delivering reliable water treatment solutions over many years of operation.
Overall, by choosing to cooperate with Jiangsu Longmem Technology Co., Ltd., one can access their expertise, advanced technologies, customized solutions, high-quality products/services along with excellent customer support—all factors contributing towards successful collaboration in achieving efficient water treatment goals.
Jiangsu Longmem Technology Co., Ltd., is top 3 RO membrane manufacturer in China.
Yes , you can have Jiangsu Longmem Technology Co., Ltd. sample for starting the business , but it is not free.
Please contact Logmem team for detail .
