LM8040-BWFR/34-FL1
Longmem

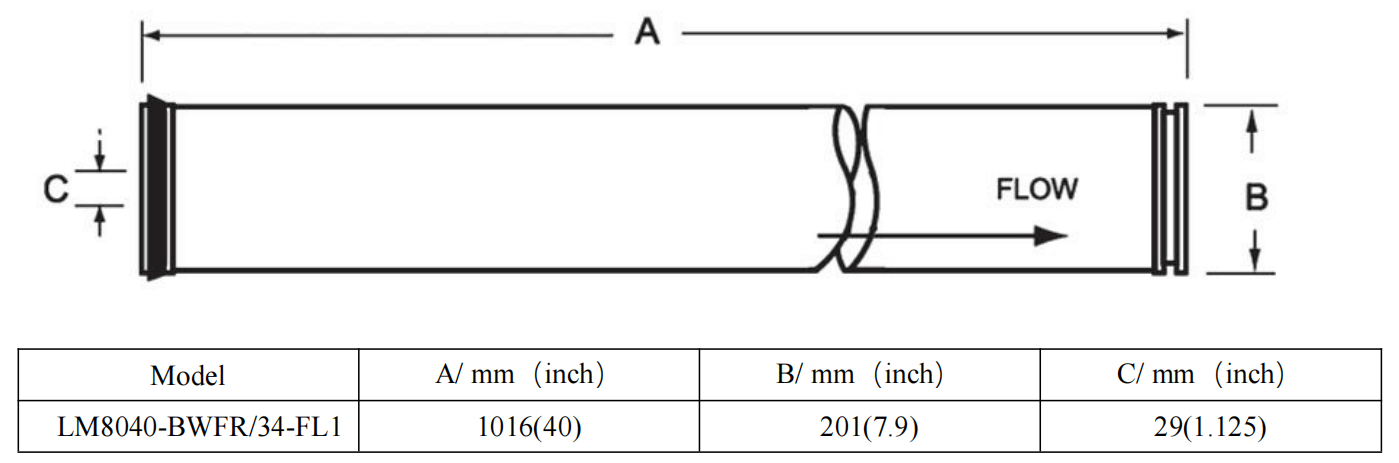

40"x7.9"x1.125"
15kg
Carton, OEM/ODM
7-14 days
ISO9001,ISO50001,GJB9001C,EAC,HALA,NSF
Accept
Pharmaceutical,Electronic, Energy industry and etc.
The LM8040-BWFR/34-FL1 is a specific model of brackish water fouling reverse osmosis membrane element. It is designed to be highly efficient in treating brackish water sources with high levels of salinity and potential fouling challenges.
This membrane element has been specifically engineered to resist fouling and maintain optimal performance over an extended period. It incorporates advanced technology and materials to ensure exceptional rejection rates for contaminants while minimizing the impact of fouling factors.
The LM8040-BWFR/34-FL1 membrane element may feature enhanced surface coatings or hydrophilic properties that discourage foulants from adhering to the surface. It may also have anti-fouling additivesincorporated into the polymeric material to inhibit microbial growth and reduce fouling potential.
Additionally, the LM8040-BWFR/34-FL1 membrane element may have a structured surface that minimizes contact between foulants and the active area, further reducing fouling. This structured surface can consist of grooves or textures that create physical barriers against fouling substances.
Overall, the LM804-BWFR/34-FL1 membrane element is designed to provide reliable performance in brackish water treatment applications by resisting fouling and maintaining high rejection rates for contaminants. Its advanced features contribute to improved efficiency, reduced maintenance requirements, and extended membrane lifespan.
RO Membrane Film
RO Membrane Element
The production of reverse osmosis (RO) membrane elements involves several steps:
The first step is to create a thin, flat sheet of the RO membrane material. This is done by spreading a liquid polymer solution onto a casting surface, such as a glass plate or a rotating drum. The solution is then allowed to dry, forming a solid thin film.
After the casting process, the thin film is treated with chlorine gas or another oxidizing agent to improve its chemical resistance and remove any impurities.
The chlorine-treated thin film is then sintered by heating it at high temperatures. This step helps to further enhance the membrane's chemical stability and mechanical strength.
A mesh-like spacer material is applied on top of one side of the sintered membrane sheet. This spacer creates channels for water flow through the element and helps maintain separation between layers during assembly.
Multiple layers of spacer-applied membranes are rolled together into a tightly wound spiral configuration, with each layer separated by feed spacers that ensure proper water flow distribution throughout the element.
The ends of the spiral-wound element are capped off with end caps made from various materials like plastics or metals (e.g., epoxy resin). These caps provide structural support and prevent leakage at the ends of the element.
Each RO membrane element undergoes rigorous testing to ensure its performance meets industry standards before it can be approved for commercial use.
It's important to note that this process may vary slightly depending on specific manufacturing techniques used by different companies or variations in product designs.

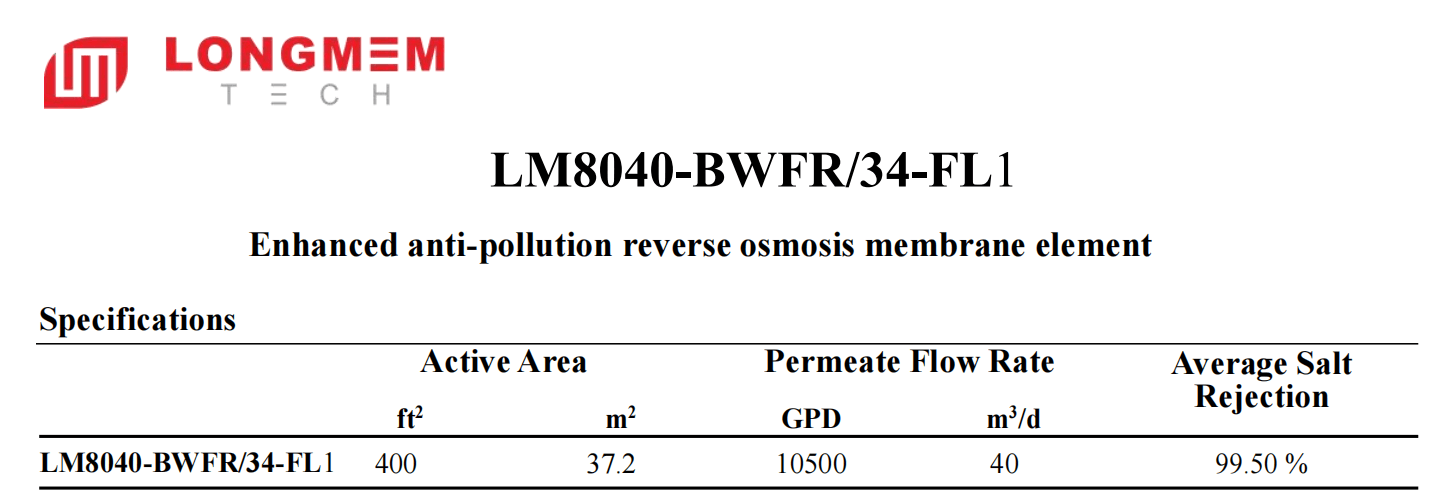

LM8040-BWFR-34-FL1-RO Membrane Specification.pdf
Test conditions: 2000ppm (NaCl) water, 25°C (77°F); 225psi (1.55MPa);
15% recovery
Minimum Salt Rejection CI- (%)：99.00%
Permeate flows variation: +/-15%
Always keep new elements in the original packaging
Avoid exposure to direct sunlight
Avoid exposure to chlorine and oxidizing agents
3-year warranty
Oxidation damage is not covered under warranty
Keep elements moist at all times after initial wetting
The initial permeate (first hour) must be discarded
During prolonged system shutdowns, membrane elements must be immersed in preservative solution.
The solution must be rinsed out before operation starts again
The LM8040-BWFR/34-FL1 brackish water fouling reverse osmosis membrane element offers several advantages:
Membrane element is specifically designed to resist fouling, including scaling, organic fouling, and biofouling. This ensures sustained performance and reduces the frequency of cleaning and maintenance.
The LM8040-BWFR/34-FL1 membrane element achieves high rejection rates for a wide range of contaminants commonly found in brackish water sources, including salts, minerals, bacteria, and viruses. This results in excellent water quality.
With its fouling-resistant properties and durable construction materials, the8040-BWFR/34-FL1 membrane element offers an extended lifespan compared to standard reverse osmosis membranes. This reduces replacementcosts and improves overall system efficiency.
The LM8040-BW/34-FL1 membrane element allows for higher water recovery rates, minimizing waste and reducing operating costs. Its high fouling resistance also leads to longer intervals between cleaning cycles, resulting in reduced downtime and increased productivity.
The LM8040-BWFR/34-FL1 membrane element operates at low pressure, reducing energy consumption compared to other reverse osmosis membranes. This makes it a cost-effective solution for brackish water treatment applications.
The LM8040-BWFR/34-FL1 membrane element is designed for easy installation and replacement in-sized reverse osmosis systems. It requires minimal maintenance due to its fouling-resistant properties, saving time and effort for operators
The LM8040-BWFR/34-FL1 membrane element can be used in various brackish water applications, industrial processes, municipal water treatment plants, agriculture, and residential systems. Its flexibility makes it suitable for different water sources with varying levels of salinity.
In summary, the advantages of the LM8040-BWFR/34-FL1 brackish water fouling reverse osmosis membrane element include high fouling resistance, improved rejection rates, long lifespan,enhanced operational efficiency,
energy-efficient design,easy installation and maintenance,and versatile application possibilities.
The LM8040-BWFR/34-FL1 brackish water fouling resistant reverse osmosis membrane element can be applied in various industries and, including:
1. Industrial water treatment:
It can be used in industrial processes that require the treatment of brish water, such as power plants, chemical manufacturing, food and beverage production, and pharmaceutical manufacturing.
2. Municipal water treatment:
The membrane element can be used in municipal water treatment plants to remove contaminants from brackish water sources before distribution to households and businesses.
3. Agriculture:
It can be used for irrigation purposes to treat brackish water sources for agricultural applications, helping improve crop yield and reduce the impact of high salinity on quality.
4. Residential systems:
The membrane element can be incorporated into residential reverse osmosis systems to provide drinking water by removing salts, minerals, bacteria, and viruses from brackish groundwater sources.
5. Desalination projects:
In regions with limited freshwater resources or where seawater desalination is not feasible due to high energy requirements or cost constraints, the LM8040-BWFR/34-FL1 membrane element can an alternative solution for treating brackish water sources.
Overall, the LM8040-BWFR/34-FL1 membrane element is versatile and suitable various applications where effective removal of contaminants from brackish water is required
While the LM8040-BWFR/34 Brackish Water Fouling Resistant Reverse Osmosis Membrane Element is a highly efficient and reliable product, there are a few warnings and considerations to keep in mind:
It is crucial to install the membrane element correctly, following the manufacturer's guidelines and instructions. Improper installation can lead to reduced performance or damage to the membrane.
The quality of the feed water should be within the recommended limits specified by the manufacturer. High levels of suspended solids, organic matter, chlorine, or other contaminants can potentially damage or foul the membrane.
Brackish water contains various minerals and salts that can accumulate on the surface of the membrane over time, leading to fouling or scaling issues. Regular maintenance and cleaning procedures should be implemented to prevent these problems.
It is important to ensure that the membrane element is compatible with the chemicals used in the feed water or cleaning solutions. Some chemicals may degrade or damage the membrane, leading to reduced performance or premature failure.
The membrane element should be operated within the recommended pressure and temperature limits specified by the manufacturer. Operating outside of these limits can negatively impact performance and longevity.
Proper maintenance is essential for optimal performance and longevity of the membrane element. This includes routine cleaning, monitoring of operating parameters, and replacement of worn-out parts as necessary.
If you are unsure about any aspect of installing, operating, or maintaining the LM8040 Reverse Osmosis Membrane Element, it is recommended to seek professional assistance from a qualified technician or water treatment specialist.
By following these warnings and guidelines, you can maximize the lifespan and efficiency of your brackish water reverse osmosis membrane elements.
There are several reasons why you choose to cooperate with Jiangsu Longmem Technology Co., Ltd.:
Jiangsu Longmem Technology Co., Ltd. has a wealth of experience in the industry specialied in water treatment technologies and solutions. They have a team of experts who possess extensive knowledge and expertise in their field.
The company is known for its advanced technological solutions for water treatment, including membrane filtration systems, reverse osmosis, and other cutting-edge technologies. By cooperating with them, one can benefit from state-of-the-art equipment and solutions.
Jiangsu Longmem Technology Co., Ltd. offers customized solutions tailored to the specific needs of their clients. They take into account various factors such as water quality, quantity, and budget constraints to provide effective and efficient solutions.
The company is committed to providing high-quality products and services to its customers. They adhere to strict quality control measures throughout the production process, ensuring that their products meet international standards.
Jiangsu Longmem Technology Co., Ltd.'s customer support team is dedicated to providing prompt assistance and after-sales services to their clients around the world. This ensures that any issues or concerns are addressed promptly.
The company has built a strong reputation in the industry for delivering reliable water treatment solutions over many years of operation.
Overall, by choosing to cooperate with Jiangsu Longmem Technology Co., Ltd., one can access their expertise, advanced technologies, customized solutions, high-quality products/services along with excellent customer support—all factors contributing towards successful collaboration in achieving efficient water treatment goals.
Jiangsu Longmem Technology Co., Ltd., is top 3 RO membrane manufacturer in China.
Yes , you can have Jiangsu Longmem Technology Co., Ltd. sample for starting the business , but it is not free.
Please contact Logmem team for detail .
