LM8040-XFR-FL1
Longmem

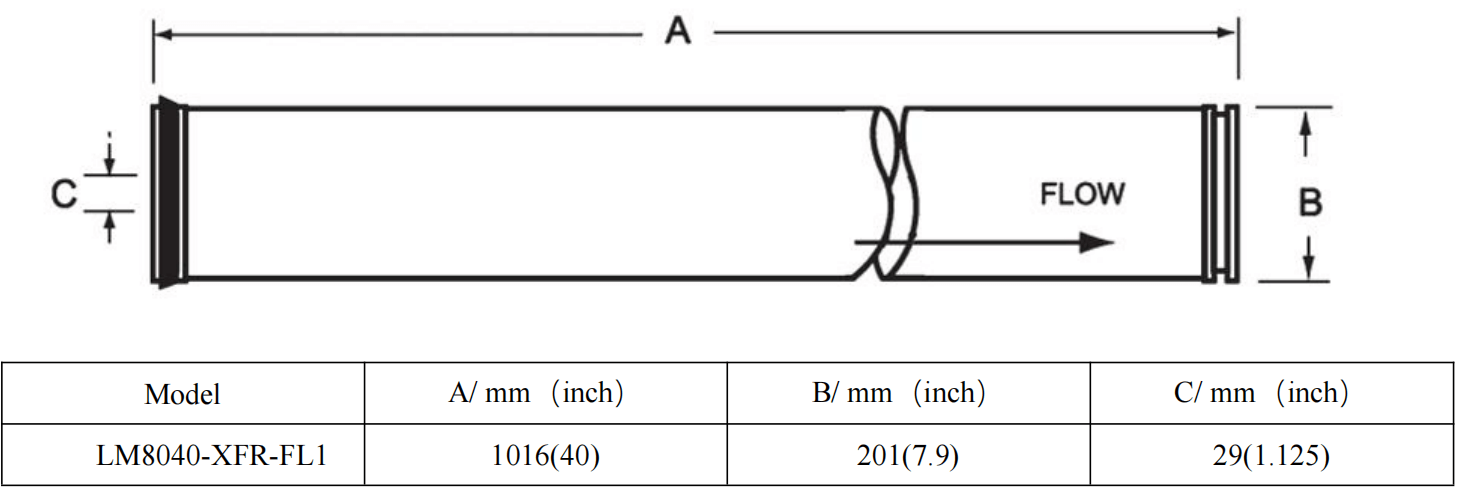

40"x7.9"x1.125"
15kg
Carton, OEM/ODM
7-14 days
ISO9001,ISO50001,GJB9001C,EAC,HALA,NSF
Accept
Pharmaceutical,Electronic, Energy industry and etc.
An extreme fouling resistant membrane element is a type of filtration component used in membrane filtration processes. It is designed to resist and minimize fouling, which refers to the accumulation of particles, contaminants, or other substances on the surface of the membrane.
Extreme fouling resistant membrane elements are typically made with specialized materials and advanced designs that enhance their resistance to fouling. These elements may feature innovative surface coatings, modified pore structures, or unique geometries that reduce the adhesion and buildup of foulants.
By minimizing fouling, these membrane elements can maintain their filtration efficiency over extended periods without frequent cleaning or replacement. This makes them particularly suitable for challenging applications where conventional membranes may quickly become clogged or lose their performance.
Overall, extreme fouling resistant membrane elements offer improved durability and longer operational lifetimes compared to standard membranes in environments prone to high fouling levels
RO Membrane Film
RO Membrane Element
The production of reverse osmosis (RO) membrane elements involves several steps:
The first step is to create a thin, flat sheet of the RO membrane material. This is done by spreading a liquid polymer solution onto a casting surface, such as a glass plate or a rotating drum. The solution is then allowed to dry, forming a solid thin film.
After the casting process, the thin film is treated with chlorine gas or another oxidizing agent to improve its chemical resistance and remove any impurities.
The chlorine-treated thin film is then sintered by heating it at high temperatures. This step helps to further enhance the membrane's chemical stability and mechanical strength.
A mesh-like spacer material is applied on top of one side of the sintered membrane sheet. This spacer creates channels for water flow through the element and helps maintain separation between layers during assembly.
Multiple layers of spacer-applied membranes are rolled together into a tightly wound spiral configuration, with each layer separated by feed spacers that ensure proper water flow distribution throughout the element.
The ends of the spiral-wound element are capped off with end caps made from various materials like plastics or metals (e.g., epoxy resin). These caps provide structural support and prevent leakage at the ends of the element.
Each RO membrane element undergoes rigorous testing to ensure its performance meets industry standards before it can be approved for commercial use.
It's important to note that this process may vary slightly depending on specific manufacturing techniques used by different companies or variations in product designs.

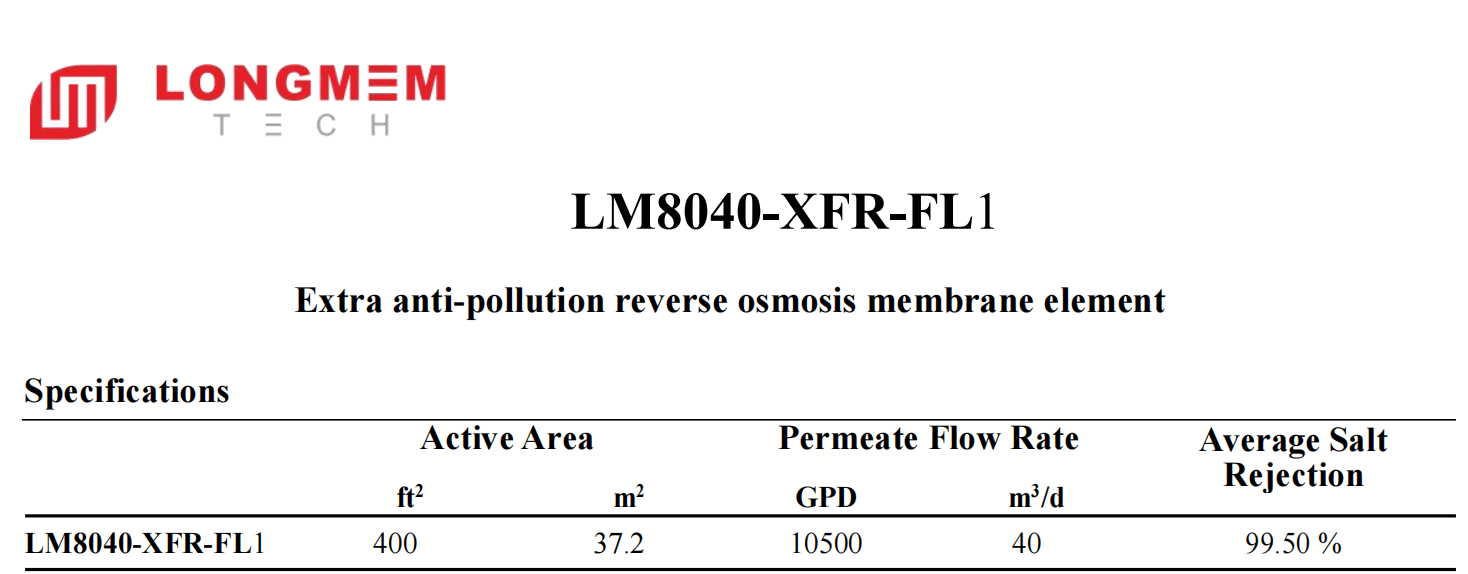

LM8040-XFR-FL1-RO Membrane Specification.pdf
Test conditions: 2000ppm (NaCl) water, 25°C (77°F); 225psi (1.55MPa);
15% recovery
Minimum Salt Rejection CI- (%)：99.00%
Permeate flows variation: +/-15%

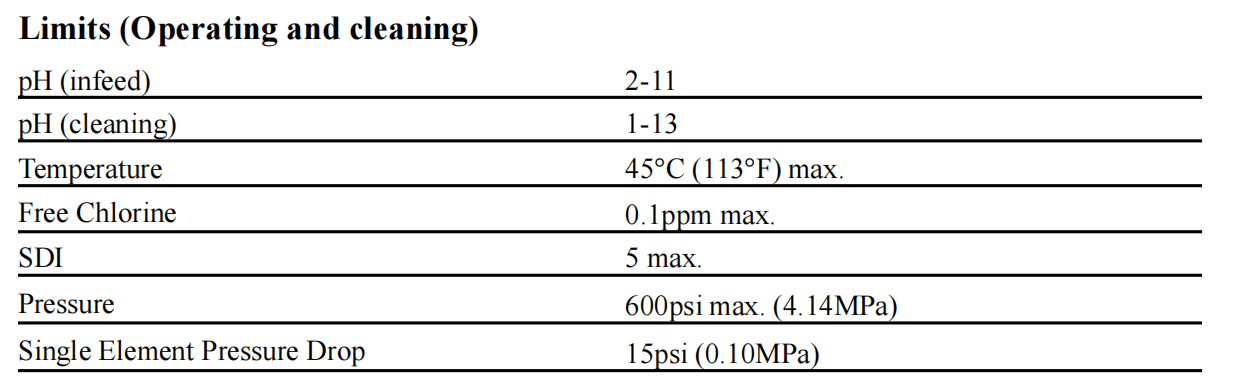

Always keep new elements in the original packaging
Avoid exposure to direct sunlight
Avoid exposure to chlorine and oxidizing agents
3-year warranty
Oxidation damage is not covered under warranty
Keep elements moist at all times after initial wetting
The initial permeate (first hour) must be discarded
During prolonged system shutdowns, membrane elements must be immersed in preservative solution.
The solution must be rinsed out before operation starts again
The LM8040-XFR-FL1 is an extreme fouling resistant reverse osmosis (RO) membrane element that offers several advantages:
The LM8040-XFR-FL1 is specifically designed to resist fouling, making it suitable for applications with high levels of foulants such as organic matter, bacteria, and particulates. This allows for longer operational cycles without the need for frequent cleaning or replacement.
The advanced design and specialized materials used in the LM8040-XFR-FL1 allow for higher water flux rates and improved permeability compared to standard RO membranes. This means faster filtration rates and increased efficiency in water treatment processes.
The extreme fouling resistant properties of the LM8040-XFR-FL1 contribute to its extended operational life. It can withstand harsh operating conditions and maintain its performance over time, reducing maintenance costs and downtime.
The LM8040-XFR-FL1 can be used in a wide range of applications including seawater desalination, brackish water treatment, wastewater reuse, industrial process water purification, and more. Its exceptional fouling resistance makes it suitable for challenging environments where conventional membranes may struggle.
By reducing the need for frequent membrane cleaning or replacement, the LM8040-XFR-FL1 can lead to cost savingsin terms of operational and maintenance expenses. Additionally, its improved flux and permeability can result in lower energy consumption during the filtration process.
The LM8040-XFR-FL1 provides a high level of rejection for contaminants, ensuring consistent water quality output. This is particularly important in applications where strict water purity standards need to be met.
The LM8040-XFR-FL1 extreme fouling resistant reverse osmosis membrane element can be applied in a variety of industries and applications, including:

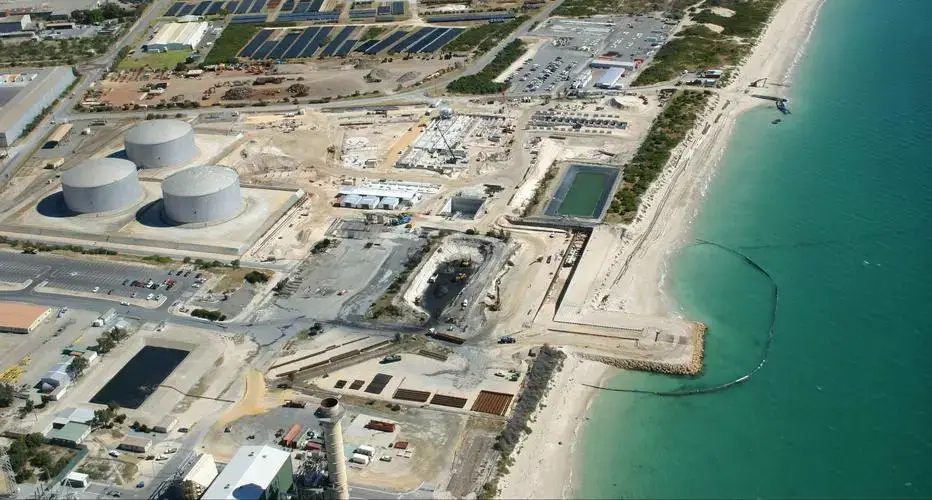

It is suitable for converting seawater into fresh drinking water or process water.
2. Brackish water treatment:
It can effectively remove impurities from brackish water sources for various uses, such as agriculture, industrial processes, and municipal supply.
3. Wastewater reuse:
The LM8040-XFR-FL1 can treat wastewater to a high standard, allowing for its safe reuse in irrigation systems, industrial processes, even for potable purposes.
4. Industrial process water purification:
It is used to purify process water in industries such as power plants, chemical manufacturing, electronics manufacturing, and pharmaceutical production.
5. Food and beverage industry:
The membrane element is suitable for purifying water used in food processing and beverage production to meet quality standards.
6. Petrochemical industry:
It can be used to treat wastewater generated during refining processes or the separation of chemicals and contaminants from produced water.

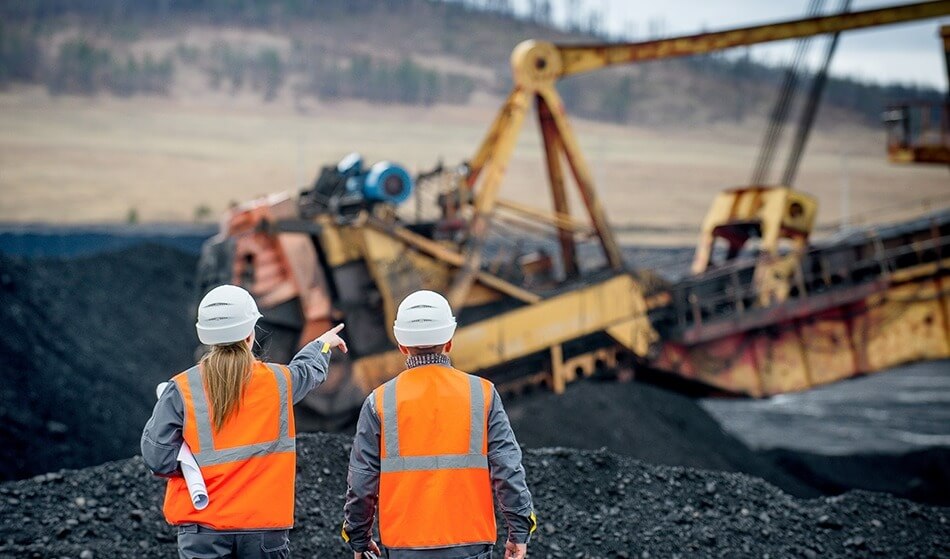

7. Mining operations:
The LM8040-XFR-FL1 can be employed mining facilities to treat groundwater or tailings pond water contaminated with heavy metals or other pollutants before discharge or reuse.
8. Oil and gas drilling operations:
It is applicable for treating brine and produced waters generated during oil extraction processes before disposal or reinjection into wells.
9. Municipal drinking water treatment plants:
The extreme fouling resistant membrane element helps municipalities produce clean drinking water by removing impurities from surface or groundwater sources before distribution to households and businesses.
These are just a few examples of where the LM8040-XFR-FL1 membrane element can be applied; its versatility makes it suitable for numerous other applications requiring reliable foulant resistance and high-quality filtration performance.
While the LM8040-XFR Extreme Fouling Resistant Reverse Osmosis Membrane Element is a highly efficient and reliable product, there are a few warnings and considerations to keep in mind:
It is crucial to install the membrane element correctly, following the manufacturer's guidelines and instructions. Improper installation can lead to reduced performance or damage to the membrane.
The quality of the feed water should be within the recommended limits specified by the manufacturer. High levels of suspended solids, organic matter, chlorine, or other contaminants can potentially damage or foul the membrane.
Brackish water contains various minerals and salts that can accumulate on the surface of the membrane over time, leading to fouling or scaling issues. Regular maintenance and cleaning procedures should be implemented to prevent these problems.
It is important to ensure that the membrane element is compatible with the chemicals used in the feed water or cleaning solutions. Some chemicals may degrade or damage the membrane, leading to reduced performance or premature failure.
The membrane element should be operated within the recommended pressure and temperature limits specified by the manufacturer. Operating outside of these limits can negatively impact performance and longevity.
Proper maintenance is essential for optimal performance and longevity of the membrane element. This includes routine cleaning, monitoring of operating parameters, and replacement of worn-out parts as necessary.
If you are unsure about any aspect of installing, operating, or maintaining the LM8040 Reverse Osmosis Membrane Element, it is recommended to seek professional assistance from a qualified technician or water treatment specialist.
By following these warnings and guidelines, you can maximize the lifespan and efficiency of your brackish water reverse osmosis membrane elements.
There are several reasons why you choose to cooperate with Jiangsu Longmem Technology Co., Ltd.:
Jiangsu Longmem Technology Co., Ltd. has a wealth of experience in the industry specialied in water treatment technologies and solutions. They have a team of experts who possess extensive knowledge and expertise in their field.
The company is known for its advanced technological solutions for water treatment, including membrane filtration systems, reverse osmosis, and other cutting-edge technologies. By cooperating with them, one can benefit from state-of-the-art equipment and solutions.
Jiangsu Longmem Technology Co., Ltd. offers customized solutions tailored to the specific needs of their clients. They take into account various factors such as water quality, quantity, and budget constraints to provide effective and efficient solutions.
The company is committed to providing high-quality products and services to its customers. They adhere to strict quality control measures throughout the production process, ensuring that their products meet international standards.
Jiangsu Longmem Technology Co., Ltd.'s customer support team is dedicated to providing prompt assistance and after-sales services to their clients around the world. This ensures that any issues or concerns are addressed promptly.
The company has built a strong reputation in the industry for delivering reliable water treatment solutions over many years of operation.
Overall, by choosing to cooperate with Jiangsu Longmem Technology Co., Ltd., one can access their expertise, advanced technologies, customized solutions, high-quality products/services along with excellent customer support—all factors contributing towards successful collaboration in achieving efficient water treatment goals.
Jiangsu Longmem Technology Co., Ltd., is top 3 RO membrane manufacturer in China.
Yes , you can have Jiangsu Longmem Technology Co., Ltd. sample for starting the business , but it is not free.
Please contact Logmem team for detail .
