LM8040-SWLE-FL1
Longmem

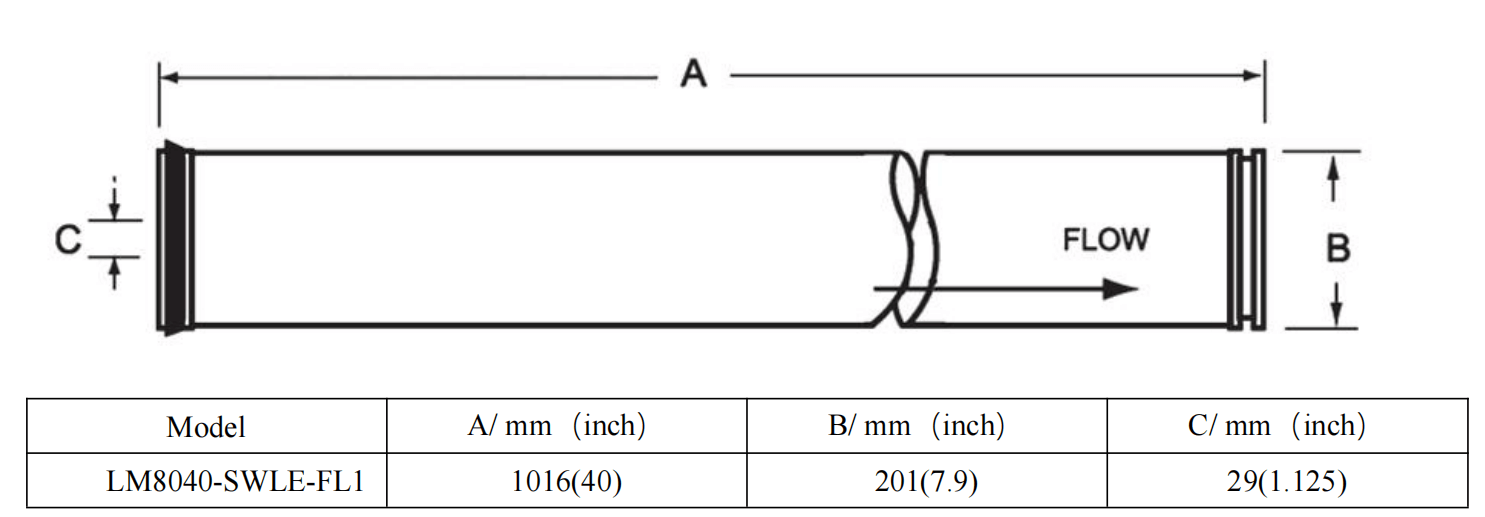

40"x7.9"x1.125"
15kg
Carton, OEM/ODM
7-14 days
ISO9001,ISO50001,GJB9001C,EAC,HALA,NSF
Accept
Industrial Waste Water, Oil & Gas ndustry, Desalination and etc.
LM8040 indicates the manufacturer brand of Jiangsu Longmem Technology Co., Ltd and the size of this reverse osmosis membrane element.
The LM8040-SWLE-FL1 is a specific model of sea water low energy reverse osmosis (RO) membrane element. It is designed for use in desalination applications, where seawater is treated to produce clean drinking water or for industrial processes.
The LM8040-SWLE-FL1 membrane element offers high salt rejection and high permeate flow rate, making it an efficient choice for large-scale desalination projects. It utilizes low energy, which means it requires lower operating pressures compared to traditional RO membranes. This results in reduced energy consumption and operational costs.
This membrane element is made from advanced materials that are resistant to fouling and scaling, ensuring long-term performance and durability. It effectively removes salt, minerals, bacteria, and other contaminants from seawater to produce high-quality potable water or process water.
The LM8040-SWLE-FL1 element is typically used in RO systems that are specifically designed for seawater desalination. These systems can be implemented in coastal areas or regions with access to abundant seawater resources but limited freshwater supply.
Overall, the LM8040-SWLE-FL1 sea water low energy reverse osmosis membrane element offers an efficient and cost-effective solution for producing clean drinking water from seawater while minimizing energy consumption
RO Membrane Film
RO Membrane Element
The production of reverse osmosis (RO) membrane elements involves several steps:
The first step is to create a thin, flat sheet of the RO membrane material. This is done by spreading a liquid polymer solution onto a casting surface, such as a glass plate or a rotating drum. The solution is then allowed to dry, forming a solid thin film.
After the casting process, the thin film is treated with chlorine gas or another oxidizing agent to improve its chemical resistance and remove any impurities.
The chlorine-treated thin film is then sintered by heating it at high temperatures. This step helps to further enhance the membrane's chemical stability and mechanical strength.
A mesh-like spacer material is applied on top of one side of the sintered membrane sheet. This spacer creates channels for water flow through the element and helps maintain separation between layers during assembly.
Multiple layers of spacer-applied membranes are rolled together into a tightly wound spiral configuration, with each layer separated by feed spacers that ensure proper water flow distribution throughout the element.
The ends of the spiral-wound element are capped off with end caps made from various materials like plastics or metals (e.g., epoxy resin). These caps provide structural support and prevent leakage at the ends of the element.
Each RO membrane element undergoes rigorous testing to ensure its performance meets industry standards before it can be approved for commercial use.
It's important to note that this process may vary slightly depending on specific manufacturing techniques used by different companies or variations in product designs.

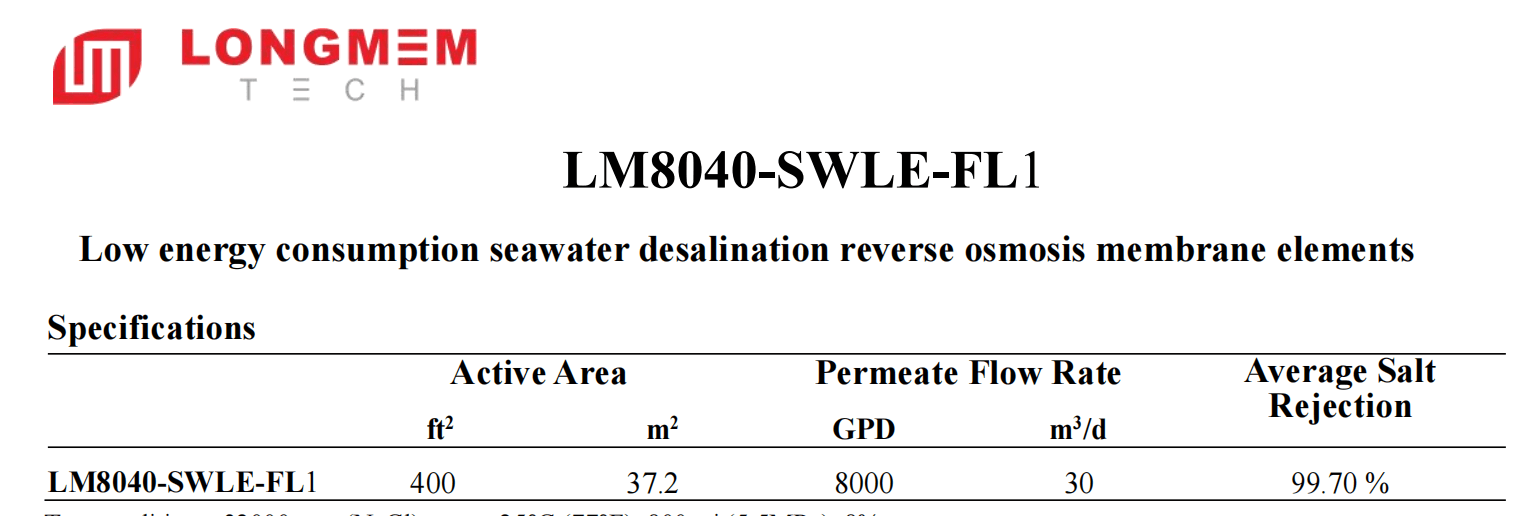

LM8040-SWLE-FL1-RO Membrane Specification.pdf
Test conditions: 32000ppm (NaCl) water, 25°C (77°F); 800psi (5.5MPa);
8% recovery
Minimum Salt Rejection CI- (%)：99.60%
Permeate flows variation: +/-15%

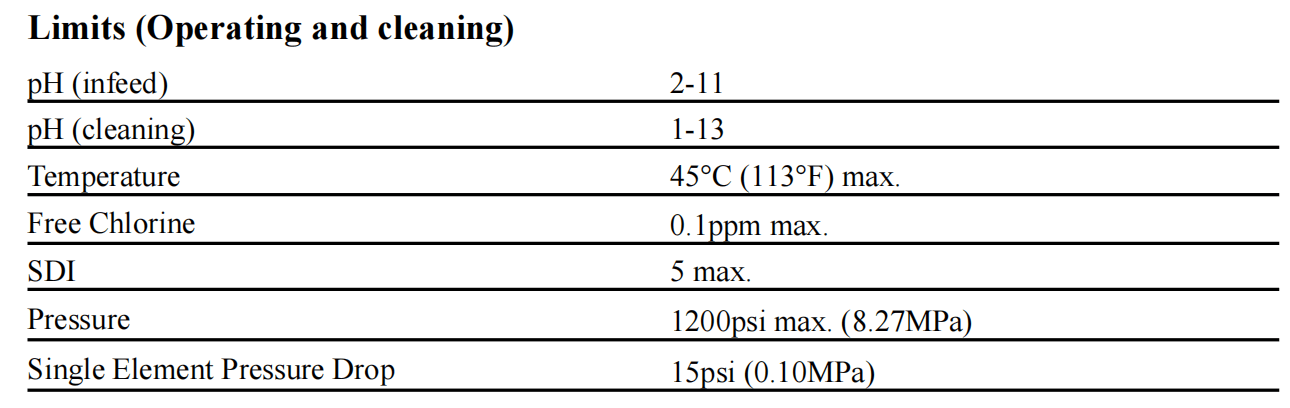

Always keep new elements in the original packaging
Avoid exposure to direct sunlight
Avoid exposure to chlorine and oxidizing agents
3-year warranty
Oxidation damage is not covered under warranty
Keep elements moist at all times after initial wetting
The initial permeate (first hour) must be discarded
During prolonged system shutdowns, membrane elements must be immersed in preservative solution.
The solution must be rinsed out before operation starts again
The LM8040-SWLE-FL1, Sea Water Low Energy Reverse Osmosis Membrane Element offers several advantages:
The element has a high salt rejection rate, effectively removing salts and other impurities from seawater. This ensures the production of clean drinking water or process water.
The membrane element allows for a high permeate flow rate, enabling efficient water production. This is particularly beneficial for large-scale desalination projects that require high volume of water.
The LM8040-SWLE-FL1 utilizes low energy, meaning it requires lower operating pressures compared to traditional RO membranes. This results in reduced energy consumption and operational costs.
The advanced materials used in the membrane element are resistant to fouling scaling, ensuring long-lasting performance and durability. This reduces maintenance requirements andextends the lifespan of the membrane element.
The LM8040-SWLE-FL1 effectively removes not only salts but also minerals, bacteria, and other contaminants from seawater. This ensures the production of high-quality potable water or process water that meets stringent standards.
The membrane element is specifically designed for seawater desalination applications. It is an ideal choice for coastal areas or regions with access to abundant seawater resources but limited freshwater supply.
The combination of high salt rejection, high permeate flow rate, low energy consumption, and resistance to fouling and scaling make the LM8040-SWLE-FL1 a cost-effective solution for sea water desalination projects. It helps reduce operating costs while ensuring efficient and reliable performance.
The LM8040-SWLE-FL1 Sea Water Low Energy Reverse Osmosis Membrane Element can be applied in various industries applications where desalination of seawater is required. Some common applications include:
The membrane element can be used in large-scale desalination plants to remove salt and other impurities from seawater to produce drinking water or for industrial use.
The membrane element can be used on offshore platforms to convert seawater into fresh water for drinking, cooking, and other purposes.
It can be installed on ships vessels to provide fresh water supply during long voyages or in areas where freshwater sources are limited.
The membrane element can be used in coastal resorts and hotels located near the sea to produce fresh water for various uses, including drinking, swimming pools, irrigation systems, etc.
It is also suitable for remote locations where access to freshwater sources is limited or expensive. This includes remote islands, coastal communities, military bases, etc.
The membrane element can be used in various industrial processes that require high-quality water with low salt content. This includes industries such as power generation, food processing, pharmaceuticals manufacturing, chemical production, etc.
Overall, the LM8040-SWLE-FL1 Sea Water Reverse Osmosis Membrane Element finds its application wherever there is a need for convertingater into freshwater for domestic or industrial use.
While the LM8040-SWLE Sea Water Low Energy Reverse Osmosis Membrane Element is a highly efficient and reliable product, there are a few warnings and considerations to keep in mind:
It is crucial to install the membrane element correctly, following the manufacturer's guidelines and instructions. Improper installation can lead to reduced performance or damage to the membrane.
The quality of the feed water should be within the recommended limits specified by the manufacturer. High levels of suspended solids, organic matter, chlorine, or other contaminants can potentially damage or foul the membrane.
Brackish water contains various minerals and salts that can accumulate on the surface of the membrane over time, leading to fouling or scaling issues. Regular maintenance and cleaning procedures should be implemented to prevent these problems.
It is important to ensure that the membrane element is compatible with the chemicals used in the feed water or cleaning solutions. Some chemicals may degrade or damage the membrane, leading to reduced performance or premature failure.
The membrane element should be operated within the recommended pressure and temperature limits specified by the manufacturer. Operating outside of these limits can negatively impact performance and longevity.
Proper maintenance is essential for optimal performance and longevity of the membrane element. This includes routine cleaning, monitoring of operating parameters, and replacement of worn-out parts as necessary.
If you are unsure about any aspect of installing, operating, or maintaining the LM8040-BW Brackish Water Reverse Osmosis Membrane Element, it is recommended to seek professional assistance from a qualified technician or water treatment specialist.
By following these warnings and guidelines, you can maximize the lifespan and efficiency of your brackish water reverse osmosis membrane elements.
There are several reasons why you choose to cooperate with Jiangsu Longmem Technology Co., Ltd.:
Jiangsu Longmem Technology Co., Ltd. has a wealth of experience in the industry specialied in water treatment technologies and solutions. They have a team of experts who possess extensive knowledge and expertise in their field.
The company is known for its advanced technological solutions for water treatment, including membrane filtration systems, reverse osmosis, and other cutting-edge technologies. By cooperating with them, one can benefit from state-of-the-art equipment and solutions.
Jiangsu Longmem Technology Co., Ltd. offers customized solutions tailored to the specific needs of their clients. They take into account various factors such as water quality, quantity, and budget constraints to provide effective and efficient solutions.
The company is committed to providing high-quality products and services to its customers. They adhere to strict quality control measures throughout the production process, ensuring that their products meet international standards.
Jiangsu Longmem Technology Co., Ltd.'s customer support team is dedicated to providing prompt assistance and after-sales services to their clients around the world. This ensures that any issues or concerns are addressed promptly.
The company has built a strong reputation in the industry for delivering reliable water treatment solutions over many years of operation.
Overall, by choosing to cooperate with Jiangsu Longmem Technology Co., Ltd., one can access their expertise, advanced technologies, customized solutions, high-quality products/services along with excellent customer support—all factors contributing towards successful collaboration in achieving efficient water treatment goals.
Jiangsu Longmem Technology Co., Ltd., is top 3 RO membrane manufacturer in China.
Yes , you can have Jiangsu Longmem Technology Co., Ltd. sample for starting the business , but it is not free.
Please contact Logmem team for detail .
