LM8040-SW-FL1
Longmem

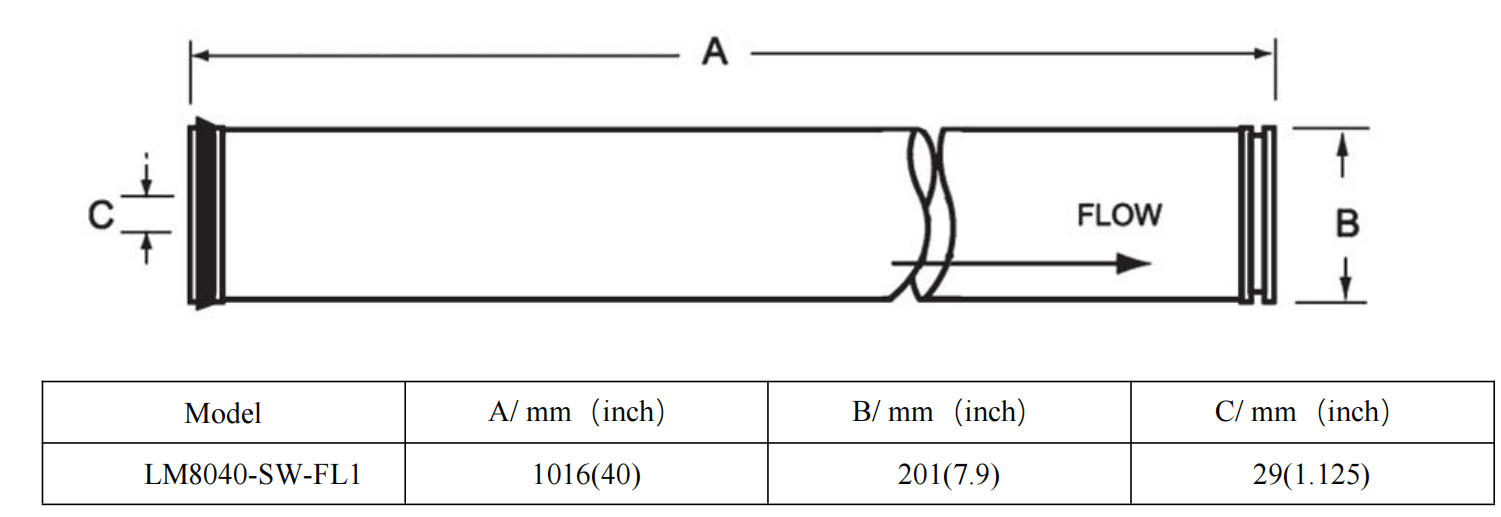

40"x7.9"x1.125"
15kg
Carton, OEM/ODM
7-14 days
ISO9001,ISO50001,GJB9001C,EAC,HALA,NSF
Accept
Industrial Waste Water, Oil & Gas ndustry, Desalination and etc.
LM8040 indicates the manufacturer brand of Jiangsu Longmem Technology Co., Ltd and the size of this reverse osmosis membrane element.
Sea Water Reverse Osmosis (SWRO) membrane elements are key components in desalination systems that convert seawater into fresh water. These membrane elements play a crucial role in the process of reverse osmosis, which involves the separation of salt and other impurities from seawater through a semi-permeable membrane.
SWRO membrane elements are specifically designed to withstand the harsh conditions of seawater, including high salinity and potential fouling agents. They are manufactured using advanced technology to ensure high performance and durability.
The SWRO membrane element works by applying pressure to seawater, forcing it through the semi-permeable membrane. This process allows only water molecules to pass through, while rejecting dissolved salts and other contaminants. As a result, fresh water is produced on one side of the membrane, while concentrated brine (highly saline solution) is discharged on the other side.
These membranes typically consist of multiple layers with thin films that have microscopic pores or channels. These pores allow only water molecules to pass through while preventing larger particles such as salt ions from crossing over.
SWRO membranes have revolutionized water treatment processes by providing an efficient and sustainable solution for obtaining freshwater resources from abundant seawater sources.
RO Membrane Film
RO Membrane Element
The production of reverse osmosis (RO) membrane elements involves several steps:
The first step is to create a thin, flat sheet of the RO membrane material. This is done by spreading a liquid polymer solution onto a casting surface, such as a glass plate or a rotating drum. The solution is then allowed to dry, forming a solid thin film.
After the casting process, the thin film is treated with chlorine gas or another oxidizing agent to improve its chemical resistance and remove any impurities.
The chlorine-treated thin film is then sintered by heating it at high temperatures. This step helps to further enhance the membrane's chemical stability and mechanical strength.
A mesh-like spacer material is applied on top of one side of the sintered membrane sheet. This spacer creates channels for water flow through the element and helps maintain separation between layers during assembly.
Multiple layers of spacer-applied membranes are rolled together into a tightly wound spiral configuration, with each layer separated by feed spacers that ensure proper water flow distribution throughout the element.
The ends of the spiral-wound element are capped off with end caps made from various materials like plastics or metals (e.g., epoxy resin). These caps provide structural support and prevent leakage at the ends of the element.
Each RO membrane element undergoes rigorous testing to ensure its performance meets industry standards before it can be approved for commercial use.
It's important to note that this process may vary slightly depending on specific manufacturing techniques used by different companies or variations in product designs.

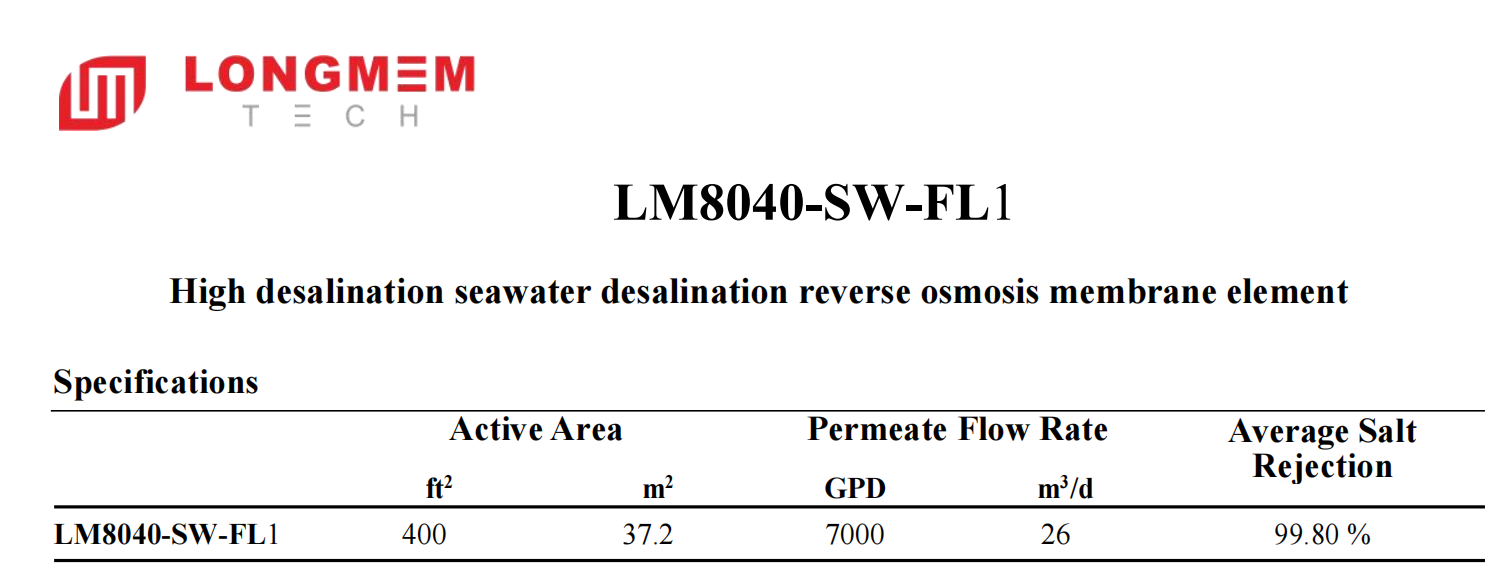

LM8040-SW-FL1-RO Membrane Specification.pdf
Test conditions: 32000ppm (NaCl) water, 25°C (77°F); 800psi (5.5MPa);
8% recovery
Minimum Salt Rejection CI- (%)：99.70%
Permeate flows variation: +/-15%
Always keep new elements in the original packaging
Avoid exposure to direct sunlight
Avoid exposure to chlorine and oxidizing agents
3-year warranty
Oxidation damage is not covered under warranty
Keep elements moist at all times after initial wetting
The initial permeate (first hour) must be discarded
During prolonged system shutdowns, membrane elements must be immersed in preservative solution.
The solution must be rinsed out before operation starts again
The LM8040-SW-FL1 Sea Water Reverse Osmosis Membrane Element offers several advantages:
The LM8040W-FL1 membrane element has a high salt rejection rate, typically exceeding 99.7%. This means that it effectively removes salts and other impurities from seawater, producing high-quality freshwater.
The LM8040-SW-FL1 element is designed to operate at low-pressure conditions, resulting in lower energy consumption compared to traditional desalination processes. This makes it more cost-effective and environmentally friendly.
The LM8040-SW-FL1 membrane element is constructed using advanced materials and manufacturing techniques, ensuring excellent durability and long life span. It can withstand the harsh conditions of seawater, including high salinity and potential fouling agents.
The LM8040-SW-FL1 membrane element is designed for easy installation in new or existing desination systems. Additionally, it requires minimal maintenance due to its self-cleaning properties and resistance to fouling.
The LM8040-SW-FL1 membrane element has a high water production rate, allowing for efficient and rapid desalination of seawater. This makes it suitable for large-scale applications, such as municipal water supply or industrial processes.
The LM8040-SW-FL1 membrane element can be utilized in a wide range of SWRO systems, including land-based and marine applications. It can handle varying feedwater, providing consistent performance across different operating environments.
The LM8040-SW-FL1 membrane element is manufactured by a reputable company with extensive experience in the field of membrane technology. It undergoes strict quality control measures to ensure reliable and consistent performance over time.
The LM8040-SW-FL1 membrane element meets industry standards and regulations for water quality, ensuring that the produced freshwater meets or exceeds drinking water standards.
Overall, the LM8040-SW-FL1 Sea Water Reverse Osmosis Membrane Element offers high performance, energy efficiency, durability, and reliability in desalination processes while minimizing operational costs and environmental impact
The LM8040-SW-FL1 Sea Water Reverse Osmosis Membrane Element can be applied in various industries and, including:
It is commonly used in desalination plants to convert seawater into freshwater for municipal water supply or industrial processes.
The LM8040-SW-FL1 element is suitable for offshore oil and gas platforms where access to freshwater sources may be limited.
It can be installed in coastal resorts or hotels that require a reliable source of high-quality freshwater for their guests.
The LM8040-SW-FL1 membrane element can be utilized on ships, tankers, cruise liners, or other marine vessels to produce fresh water from seawater while at sea.
It is ideal for remote locations with limited access to freshwater sources, such as islands, coastal communities, or remote mining operations.
The LM8040-SW-FL1 membrane element can be used in industries that require large amounts of purified water, such as power plants, food processing facilities, pharmaceutical manufacturing plants, and beverage production facilities.
It can also be employed in agricultural applications where there is a need for desalinated water for irrigation.
During natural disasters or emergency situations where the regular water supply may be compromised or contaminated, the LM8040-SW-FL1 element can provide a reliable source of clean drinking water quickly.
Overall, the versatility of the LM8040-SW-FL1 membrane allows it to be applied in various sectors that require efficient desalination processes and production of high-quality freshwater from seawater.
While the LM8040-SW Sea Water Reverse Osmosis Membrane Element is a highly efficient and reliable product, there are a few warnings and considerations to keep in mind:
It is crucial to install the membrane element correctly, following the manufacturer's guidelines and instructions. Improper installation can lead to reduced performance or damage to the membrane.
The quality of the feed water should be within the recommended limits specified by the manufacturer. High levels of suspended solids, organic matter, chlorine, or other contaminants can potentially damage or foul the membrane.
Brackish water contains various minerals and salts that can accumulate on the surface of the membrane over time, leading to fouling or scaling issues. Regular maintenance and cleaning procedures should be implemented to prevent these problems.
It is important to ensure that the membrane element is compatible with the chemicals used in the feed water or cleaning solutions. Some chemicals may degrade or damage the membrane, leading to reduced performance or premature failure.
The membrane element should be operated within the recommended pressure and temperature limits specified by the manufacturer. Operating outside of these limits can negatively impact performance and longevity.
Proper maintenance is essential for optimal performance and longevity of the membrane element. This includes routine cleaning, monitoring of operating parameters, and replacement of worn-out parts as necessary.
If you are unsure about any aspect of installing, operating, or maintaining the LM8040-BW Brackish Water Reverse Osmosis Membrane Element, it is recommended to seek professional assistance from a qualified technician or water treatment specialist.
By following these warnings and guidelines, you can maximize the lifespan and efficiency of your brackish water reverse osmosis membrane elements.
There are several reasons why you choose to cooperate with Jiangsu Longmem Technology Co., Ltd.:
Jiangsu Longmem Technology Co., Ltd. has a wealth of experience in the industry specialied in water treatment technologies and solutions. They have a team of experts who possess extensive knowledge and expertise in their field.
The company is known for its advanced technological solutions for water treatment, including membrane filtration systems, reverse osmosis, and other cutting-edge technologies. By cooperating with them, one can benefit from state-of-the-art equipment and solutions.
Jiangsu Longmem Technology Co., Ltd. offers customized solutions tailored to the specific needs of their clients. They take into account various factors such as water quality, quantity, and budget constraints to provide effective and efficient solutions.
The company is committed to providing high-quality products and services to its customers. They adhere to strict quality control measures throughout the production process, ensuring that their products meet international standards.
Jiangsu Longmem Technology Co., Ltd.'s customer support team is dedicated to providing prompt assistance and after-sales services to their clients around the world. This ensures that any issues or concerns are addressed promptly.
The company has built a strong reputation in the industry for delivering reliable water treatment solutions over many years of operation.
Overall, by choosing to cooperate with Jiangsu Longmem Technology Co., Ltd., one can access their expertise, advanced technologies, customized solutions, high-quality products/services along with excellent customer support—all factors contributing towards successful collaboration in achieving efficient water treatment goals.
Jiangsu Longmem Technology Co., Ltd., is top 3 RO membrane manufacturer in China.
Yes , you can have Jiangsu Longmem Technology Co., Ltd. sample for starting the business , but it is not free.
Please contact Logmem team for detail .
