LM8040-ULP-FL1
Longmem

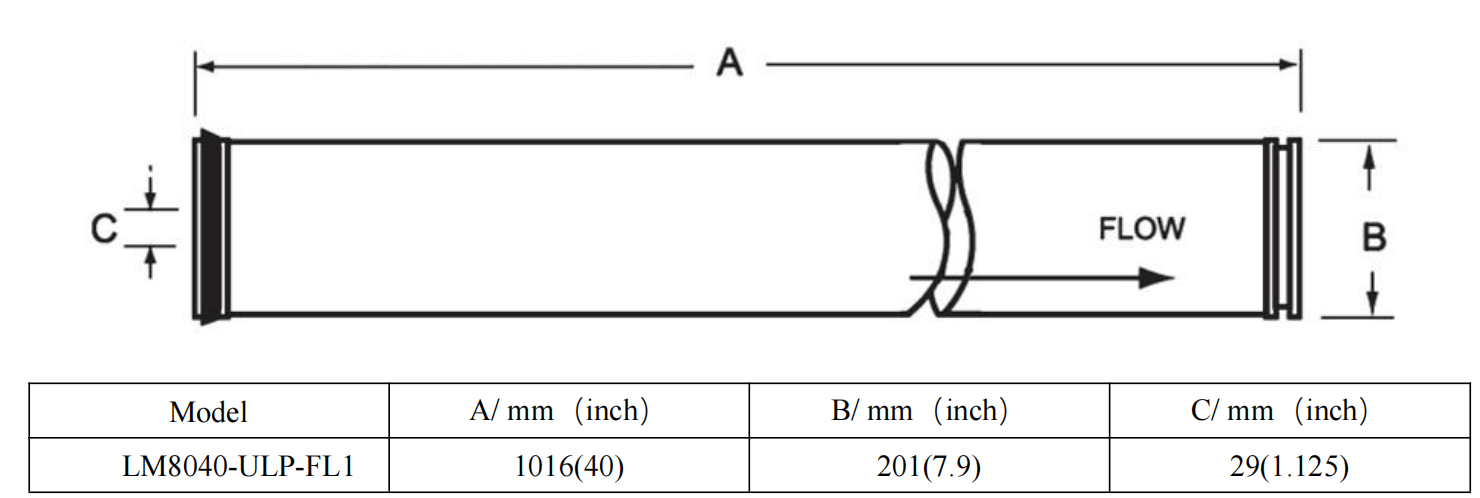

40"x7.9"x1.125"
15kg
Carton, OEM/ODM
7-14 days
ISO9001,ISO50001,GJB9001C,EAC,HALA,NSF
Accept
Residential,Commercial, Industrial processes, Mobile units for Remote Locations etc.
LM8040 indicates the manufacturer brand of Jiangsu Longmem Technology Co., Ltd and the size of this reverse osmosis membrane element
A ultra low pressure reverse osmosis (RO) membrane element is a key component in RO systems that helps reduce energy consumption and improve overall system efficiency. Reverse osmosis is a widely used water treatment process that removes impurities, contaminants, dissolved solids from water by forcing it through a semi-permeable membrane under pressure.
Traditional RO membranes require high pressures achieve the desired level of filtration, resulting in significant energy consumption. However, advancements in membrane technology have led to the development of ultra low pressure RO elements that offer improved water permeability and reduced pressure requirements.
These ultra low pressure membrane elements are designed with specialized materials and engineering techniques to enhance filtration performance while minimizing energy usage. They allow for higher water flux rates, meaning more water can be produced in less time compared to conventional membranes. This not only saves energy but also increases system productivity. One of the main advantages of using low-energy RO membrane elements is their improved fouling resistance properties. Fouling occurs when particles or organic matter accumulate on the surface of the membrane, reducing its effectiveness over time. Low-energy membranes are engineered to resist fouling better than traditional membranes, resulting in longer operational life and lower maintenance costs.
The development of ultra low pressure RO membranes has been driven by environmental concerns and increasing efforts towards sustainable practices. By reducing energy consumption, these membranes contribute to a more sustainable water treatment process and help mitigate the impact on the environment.
RO Membrane Film
RO Membrane Element
The production of reverse osmosis (RO) membrane elements involves several steps:
The first step is to create a thin, flat sheet of the RO membrane material. This is done by spreading a liquid polymer solution onto a casting surface, such as a glass plate or a rotating drum. The solution is then allowed to dry, forming a solid thin film.
After the casting process, the thin film is treated with chlorine gas or another oxidizing agent to improve its chemical resistance and remove any impurities.
The chlorine-treated thin film is then sintered by heating it at high temperatures. This step helps to further enhance the membrane's chemical stability and mechanical strength.
A mesh-like spacer material is applied on top of one side of the sintered membrane sheet. This spacer creates channels for water flow through the element and helps maintain separation between layers during assembly.
Multiple layers of spacer-applied membranes are rolled together into a tightly wound spiral configuration, with each layer separated by feed spacers that ensure proper water flow distribution throughout the element.
The ends of the spiral-wound element are capped off with end caps made from various materials like plastics or metals (e.g., epoxy resin). These caps provide structural support and prevent leakage at the ends of the element.
Each RO membrane element undergoes rigorous testing to ensure its performance meets industry standards before it can be approved for commercial use.
It's important to note that this process may vary slightly depending on specific manufacturing techniques used by different companies or variations in product designs.

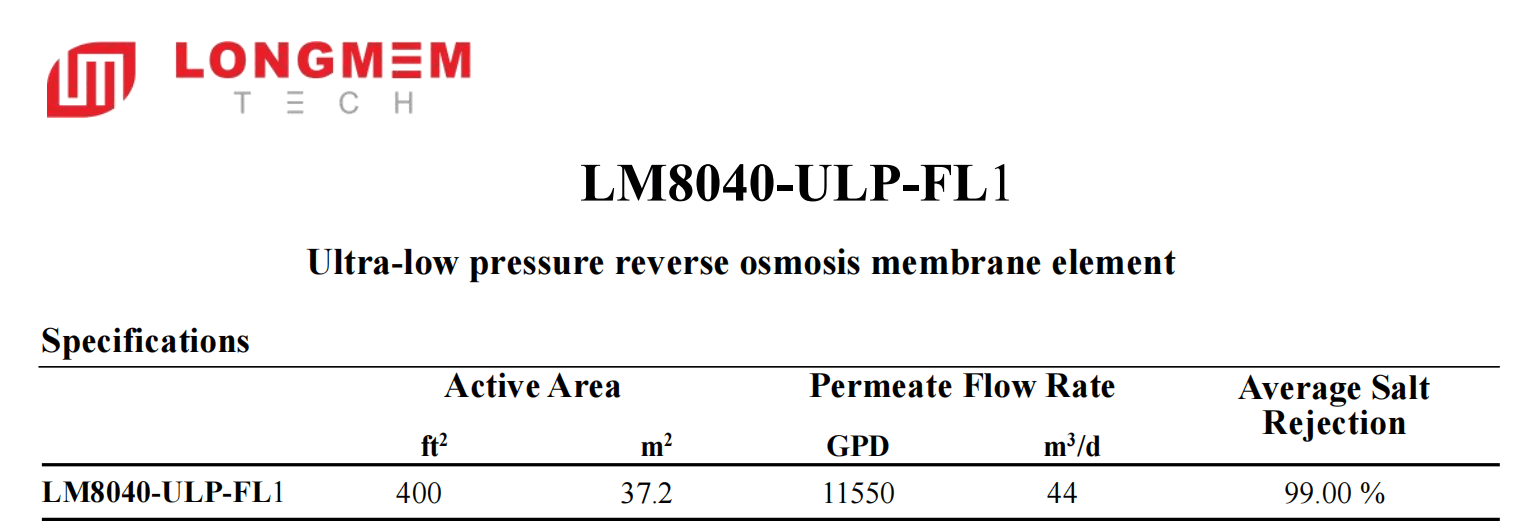

LM8040-ULP-FL1-RO Membrane Specification.pdf
Test conditions: 500ppm (NaCl) water, 25°C (77°F); 100psi (0.69MPa);
15% recovery
Permeate flows variation: +/-15%
Always keep new elements in the original packaging
Avoid exposure to direct sunlight
Avoid exposure to chlorine and oxidizing agents
3-year warranty
Oxidation damage is not covered under warranty
Keep elements moist at all times after initial wetting
The initial permeate (first hour) must be discarded
During prolonged system shutdowns, membrane elements must be immersed in preservative solution.
The solution must be rinsed out before operation starts again
The LM8040-ULP-FL1 Ultra Low Pressure Reverse Osmosis Membrane Element offers several advantages:
This membrane is specifically designed to operate at lower pressures and requires less energy compared to standard reverse osmosis membranes. It can reduce the overall energy costs of operating a reverse osmosis system.
The LM8040-ULP-FL1 membrane has a high salt rejection, meaning it effectively removes dissolved salts and other impurities from water. This ensures high-quality permeate and improves the overall efficiency of system.
The membrane element is manufactured using advanced materials and processes, resulting in a more durable product with an extended lifespan. It can withstand harsh operating conditions, reducing the need for frequent replacements.
With its optimized design, the LM8040-ULP-FL1 membrane offers improved water production rates compared to traditional membranes of similar size. This allows for increased productivity and higher flow rates.
The LM8040-ULP-FL1 membrane element is designed to be compatible with various standard sizes of reverse osmosis systems, making it suitable for retrofitting existing systems or integrating into new installations without major modifications.
The design of this membrane element facilitates easy installation and maintenance procedures, minimizing downtime during servicing or replacement activities.
Overall, the LM8040-ULP-FL1 Ultra Low Pressure Reverse Osmosisbrane Element provides energy savings, high salt rejection rates, durability, improved productivity, compatibility with existing systems, and ease of installation/maintenance – making it a reliable choice for reverse osmosis applications requiring low-energy operation.
The LM8040-ULP-FL1 Ultra Low Pressure Reverse Osmosis Membrane Element can be applied in various water treatment applications, including:
These membrane elements can be used in household water filtration systems, drinking water vending machines, and commercial-scale water purification systems.
The ULP RO membrane elements are suitable for industries such as food and beverage processing, pharmaceutical manufacturing, power plants, and electronics production where high-quality process water is required.
These membrane elements can be used in desalination plants to convert seawater or brackish water into freshwater for municipal or industrial use.
The ULP RO membrane elements can be incorporated into wastewater treatment systems to remove impurities and contaminants from the effluent for safe discharge or reuse purposes.
These membrane elements can be employed to treat impaired irrigation waters containing salts or other contaminants that may negatively affect crop growth.

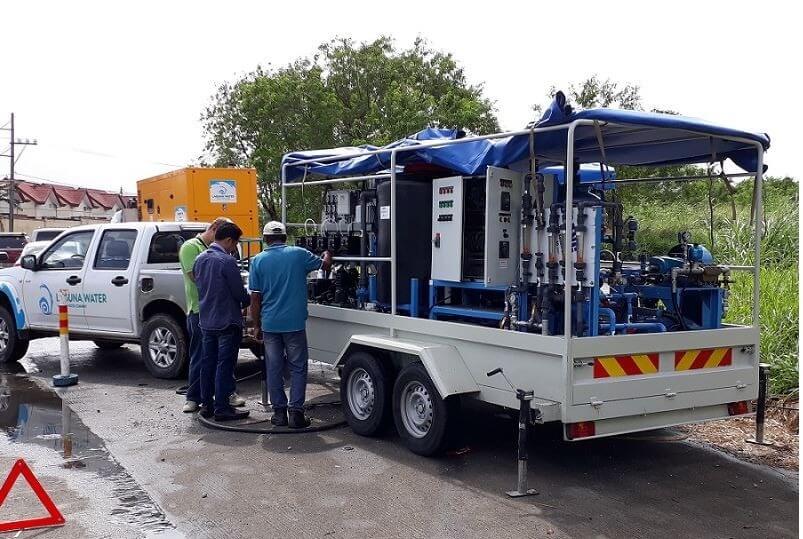

The ULP RO membranes are ideal for portable or mobile water treatment units used during emergencies, disaster relief operations, remote locations without access to clean water sources, etc.
While the LM8040-ULP-FL1 Ultra Low Pressure Reverse Osmosis Membrane Element is a highly efficient and reliable product, there are a few warnings and considerations to keep in mind:
It is crucial to install the membrane element correctly, following the manufacturer's guidelines and instructions. Improper installation can lead to reduced performance or damage to the membrane.
The quality of the feed water should be within the recommended limits specified by the manufacturer. High levels of suspended solids, organic matter, chlorine, or other contaminants can potentially damage or foul the membrane.
Brackish water contains various minerals and salts that can accumulate on the surface of the membrane over time, leading to fouling or scaling issues. Regular maintenance and cleaning procedures should be implemented to prevent these problems.
It is important to ensure that the membrane element is compatible with the chemicals used in the feed water or cleaning solutions. Some chemicals may degrade or damage the membrane, leading to reduced performance or premature failure.

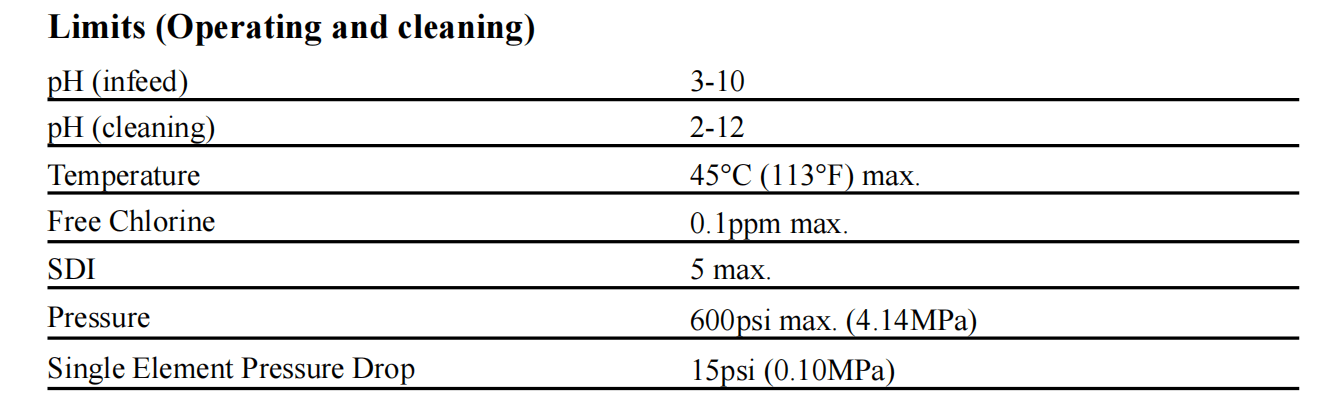

The membrane element should be operated within the recommended pressure and temperature limits specified by the manufacturer. Operating outside of these limits can negatively impact performance and longevity.
Proper maintenance is essential for optimal performance and longevity of the membrane element. This includes routine cleaning, monitoring of operating parameters, and replacement of worn-out parts as necessary.
If you are unsure about any aspect of installing, operating, or maintaining the LM8040 Reverse Osmosis Membrane Element, it is recommended to seek professional assistance from a qualified technician or water treatment specialist.
By following these warnings and guidelines, you can maximize the lifespan and efficiency of your brackish water reverse osmosis membrane elements.
There are several reasons why you choose to cooperate with Jiangsu Longmem Technology Co., Ltd.:
Jiangsu Longmem Technology Co., Ltd. has a wealth of experience in the industry specialied in water treatment technologies and solutions. They have a team of experts who possess extensive knowledge and expertise in their field.
The company is known for its advanced technological solutions for water treatment, including membrane filtration systems, reverse osmosis, and other cutting-edge technologies. By cooperating with them, one can benefit from state-of-the-art equipment and solutions.
Jiangsu Longmem Technology Co., Ltd. offers customized solutions tailored to the specific needs of their clients. They take into account various factors such as water quality, quantity, and budget constraints to provide effective and efficient solutions.
The company is committed to providing high-quality products and services to its customers. They adhere to strict quality control measures throughout the production process, ensuring that their products meet international standards.
Jiangsu Longmem Technology Co., Ltd.'s customer support team is dedicated to providing prompt assistance and after-sales services to their clients around the world. This ensures that any issues or concerns are addressed promptly.
The company has built a strong reputation in the industry for delivering reliable water treatment solutions over many years of operation.
Overall, by choosing to cooperate with Jiangsu Longmem Technology Co., Ltd., one can access their expertise, advanced technologies, customized solutions, high-quality products/services along with excellent customer support—all factors contributing towards successful collaboration in achieving efficient water treatment goals.
Jiangsu Longmem Technology Co., Ltd., is top 3 RO membrane manufacturer in China.
Yes , you can have Jiangsu Longmem Technology Co., Ltd. sample for starting the business , but it is not free.
Please contact Logmem team for detail .
