LM4040-XLE-FL1
Longmem

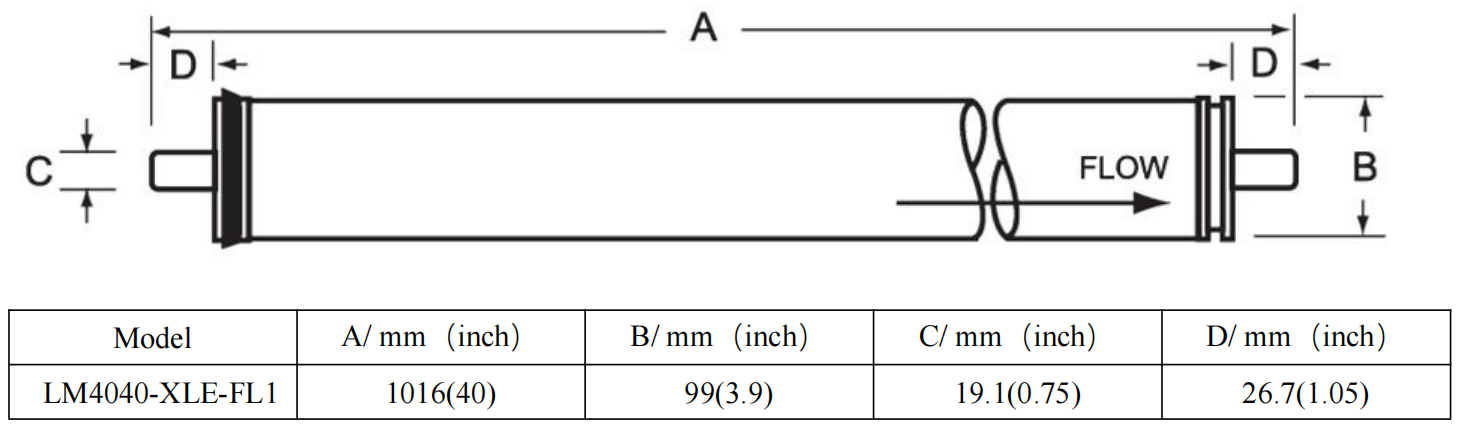

40"x3.9"x0.75"x1.05"
3.5kg
Carton, OEM/ODM
7-14 days
ISO9001,ISO50001,GJB9001C,EAC,HALA,NSF
Accept
Municipal and Residential Drinking Water,Irrigation and etc.
The LM4040-XLE-FL1 is an extreme low energy reverse osmosis (RO) membrane element designed to provide highly efficient water purification while minimizing energy consumption. This membrane element is part of the LM4040 series, which is known for its exceptional performance and cost-effectiveness.
The LM4040-XLE-FL1 combines advanced thin-film composite (TFC) technology with a unique spiral-wound design to deliver outstanding water permeability and rejection rates. It features a thin polyamide layer that effectively removes dissolved salts, bacteria, viruses, and other contaminants from water sources.
What sets the LM4040-XLE-FL1 apart is its ability to operate at extremely low pressures. This allows it to significantly reduce energy requirements compared to conventional RO membranes without sacrificing performance or compromising water quality.
This membrane element is ideal for various applications where energy efficiency is crucial, such as desalination plants, industrial wastewater treatment systems, potable water production facilities, and other large-scale water purification processes. With its high productivity and low operating costs, the LM4040-XLE-FL1 offers an environmentally-friendly solution that helps conserve resources while ensuring clean and safe drinking water.
In summary, the LM4040-XLE-FL1 is an extreme low energy reverse osmosis membrane element that combines advanced TFC technology and a unique design to provide highly efficient water purification with minimal energy consumption. Its ability to operate at extremely low pressures makes it suitable for various applications where energy efficiency is a priority.
RO Membrane Film
RO Membrane Element
The Extreme Low Energy Reverse Osmosis Membrane Element, specifically the LM4040-XLE-FL1, is a product that is manufactured by Longmem Technology Co., Ltd. There are several general steps involved:
The membrane element supplier conducts research and development activities to design a reverse osmosis (RO) membrane specifically suitable for treating brackish water while being resistant to fouling.
The supplier selects high-quality materials that can withstand brackish water conditions and prevent fouling.
The selected materials are combined and cast in a flat sheet form using specialized casting techniques. This sheet is then cut into desired sizes to create individual membranes.
The individual membranes undergo further treatment processes such as coating or grafting with anti-fouling agents or surface modifications to enhance their resistance against fouling.
The membranes are rolled into membrane elements by placing them between permeate spacers and feed spacers, which provide structural support and create channels for water flow during operation.
Each finished LM4040-XLE-FL1 membrane element undergoes rigorous testing.

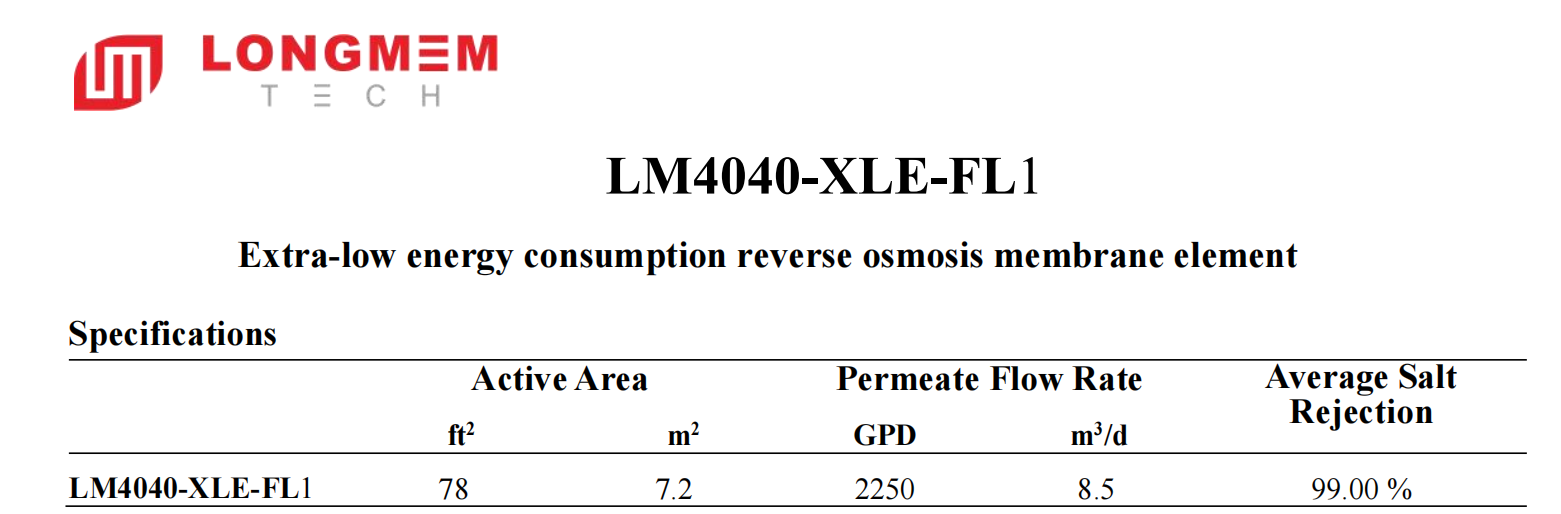

LM4040-XLE-FL1-RO Membrane Specification.pdf

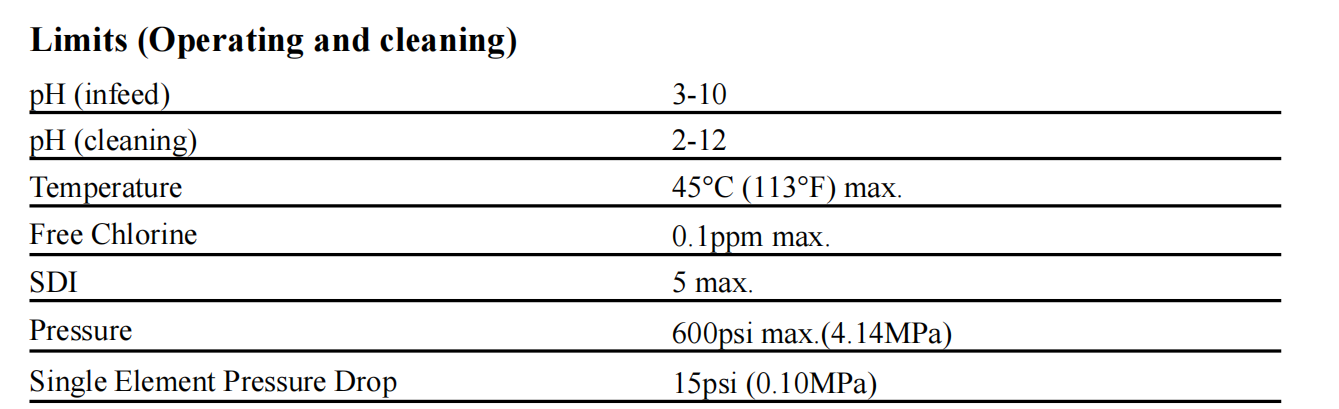

Test conditions: 500ppm (NaCl) water, 25°C (77°F); 100psi (0.69MPa);
15% recovery
Permeate flows variation: +/-15%
Always keep new elements in the original packaging
Avoid exposure to direct sunlight
Avoid exposure to chlorine and oxidizing agents
3-year warranty Oxidation damage is not covered under warranty
Keep elements moist at all times after initial wetting
The initial permeate (first hour) must be discarded
During prolonged system shutdowns, membrane elements must be immersed in preservative solution.
The solution must be rinsed out before operation starts again
The LM4040-XLE-FL1 extreme low energy reverse osmosis (RO) membrane element offers several advantages compared to traditional RO membranes. Here are some of its key benefits:
The main advantage of the LM4040-XLE-FL1 is its significantly lower energy requirements. It operates at lower pressures, which translates into reduced electricity usage and overall operating costs. This makes it a more sustainable and cost-effective solution for water purification.
Despite the low energy requirements, the LM4040-XLE-FL1 maintains high purification efficiency. It effectively removes dissolved solids, contaminants, and impurities from water, ensuring a high-quality treated product.
The LM4040-XLE-FL1 is engineered with superior fouling resistance properties. It can resist the buildup of contaminants on its surface, such as organic matter, bacteria, and other impurities commonly found in water sources. This extends the membrane's lifespan and reduces the frequency of cleaning and maintenance required.
The LM4040-XLE-FL1 is designed to be reliable and durable, ensuring long-term performance. It is made from high-quality materials that are resistant to degradation and can withstand harsh operating conditions.
The LM4040-XLE-FL1 membrane element can be used in various applications, including desalination plants, wastewater treatment facilities, drinking water purification systems, and industrial processes that require high-quality treated water. Its versatility makes it suitable for a wide range of industries.
Due to its low energy consumption, the LM4040-XLE-FL1 contributes to reducing greenhouse gas emissions associated with energy production for water treatment processes. It aligns with sustainability goals by minimizing environmental impact while providing clean water solutions.
In summary, the LM4040-XLE-FL1 extreme low energy reverse osmosis membrane element offers advantages such as reduced energy consumption, high performance efficiency even at lower pressures, enhanced fouling resistance properties for longer-lasting performance reliability and durability suitable for various applications while minimizing environmental impact through reduced energy usage.
The LM4040-XLE-FL1, Extreme Low Energy Reverse Osmosis Membrane Element can be applied in various industries and applications including:
The membrane element can be used in desalination plants to remove salt and other impurities from seawater or brackish water, producing fresh water for drinking, irrigation, or industrial use.
It can be used in water treatment plants to purify and filter municipal or industrial wastewater before it is discharged into the environment. This helps to minimize pollution and protect natural water sources.
The membrane element can be used for the filtration of water used in food and beverage production processes. It ensures that the water meets quality standards and is free from contaminants, making it safe for consumption.
It can be utilized in the production of pharmaceutical products where high-purity water is required for drug formulation, cleaning processes, and rinsing of equipment.
The membrane element is suitable for applications where ultra-pure water is needed for electronic component manufacturing processes such as semiconductor fabrication or printed circuit board assembly.
It can be employed in power generation facilities such as thermal power plants or nuclear power plants to treat feedwater before it enters boilers or reactors, ensuring efficient operation and preventing scaling or corrosion issues.
The membrane element can be used to treat produced water generated during oil extraction operations before its disposal or reuse onsite, minimizing environmental impact.
In agricultural operations like hydroponics systems or drip irrigation systems, the membrane element helps remove impurities from nutrient solutions or irrigation waters to ensure optimal plant growth while preventing clogging of irrigation equipment.
These are just a few examples of where the LM4040-XLE-FL1 Extreme Low Energy Reverse Osmosis Membrane Element can be applied; Its versatility makes it suitable for a wide range of industries requiring efficient filtration processes with low energy consumption.
While the LM4040-XLE-FL1 Extreme Low Energy Reverse Osmosis Membrane Element is a highly efficient and reliable product, there are a few warnings and considerations to keep in mind:
It is crucial to install the membrane element correctly, following the manufacturer's guidelines and instructions. Improper installation can lead to reduced performance or damage to the membrane.
The quality of the feed water should be within the recommended limits specified by the manufacturer. High levels of suspended solids, organic matter, chlorine, or other contaminants can potentially damage or foul the membrane.
Brackish water contains various minerals and salts that can accumulate on the surface of the membrane over time, leading to fouling or scaling issues. Regular maintenance and cleaning procedures should be implemented to prevent these problems.
It is important to ensure that the membrane element is compatible with the chemicals used in the feed water or cleaning solutions. Some chemicals may degrade or damage the membrane, leading to reduced performance or premature failure.
The membrane element should be operated within the recommended pressure and temperature limits specified by the manufacturer. Operating outside of these limits can negatively impact performance and longevity.
Proper maintenance is essential for optimal performance and longevity of the membrane element. This includes routine cleaning, monitoring of operating parameters, and replacement of worn-out parts as necessary.
If you are unsure about any aspect of installing, operating, or maintaining the LM4040 Reverse Osmosis Membrane Element, it is recommended to seek professional assistance from a qualified technician or water treatment specialist.
By following these warnings and guidelines, you can maximize the lifespan and efficiency of your brackish water reverse osmosis membrane elements.
There are several reasons why you choose to cooperate with Jiangsu Longmem Technology Co., Ltd.:
Jiangsu Longmem Technology Co., Ltd. has a wealth of experience in the industry specialied in water treatment technologies and solutions. They have a team of experts who possess extensive knowledge and expertise in their field.
The company is known for its advanced technological solutions for water treatment, including membrane filtration systems, reverse osmosis, and other cutting-edge technologies. By cooperating with them, one can benefit from state-of-the-art equipment and solutions.
Jiangsu Longmem Technology Co., Ltd. offers customized solutions tailored to the specific needs of their clients. They take into account various factors such as water quality, quantity, and budget constraints to provide effective and efficient solutions.
The company is committed to providing high-quality products and services to its customers. They adhere to strict quality control measures throughout the production process, ensuring that their products meet international standards.
Jiangsu Longmem Technology Co., Ltd.'s customer support team is dedicated to providing prompt assistance and after-sales services to their clients around the world. This ensures that any issues or concerns are addressed promptly.
The company has built a strong reputation in the industry for delivering reliable water treatment solutions over many years of operation.
Overall, by choosing to cooperate with Jiangsu Longmem Technology Co., Ltd., one can access their expertise, advanced technologies, customized solutions, high-quality products/services along with excellent customer support—all factors contributing towards successful collaboration in achieving efficient water treatment goals.
Low Energy RO Membrane elements are specially designed to run at 150 psi while producing the same product flow as standard elements.
Yes , you can have Jiangsu Longmem Technology Co., Ltd. sample for starting the business , but it is not free.
Please contact Logmem team for detail .
