Reverse osmosis (RO) and nanofiltration (NF) are often discussed as they are similar membrane technologies that solve a variety of process separation and filtration needs. These two technologies are being utilized more and more by industrial facilities looking to recycle and treat water for reuse and conservation.
As water scarcity issues continue to increase, these technologies have become a long-term economical solution for avoiding astronomical discharge and water-usage fees in addition to serving other filtration requirements, such as process-water generation and product concentration. If you are looking for a separation or filtration solution, you might be thinking RO/NF is a good fit. But what are reverse osmosis and nanofiltration, exactly, and how do they work?
Reverse osmosis, also known as RO, is a membrane technology that uses a semipermeable medium to remove certain ions and particles from a liquid stream. RO removes contaminants based on their particle size and charge—generally anything that is 0.0001 µmor larger, including:
• bacteria
• calcium
• colloidal particles
• fluoride
• iron
• manganese
• organic material
• pyrogens
• salt
• viruses
Because of its filtration properties, RO is often used to:
• clean wastewater to acceptable effluent standards or for reuse
• concentrate solvents used in the food and beverage industry
• create ultrapure process water streams, such as required in the microelectronics industry
• desalinate seawater or other brine solutions
• generate potable drinking water
RO is also the reverse process of osmosis, a phenomenon that occurs naturally when a lower-solute stream (with a higher water concentration) migrates toward a higher-solute stream (with a lower water concentration) through a semipermeable membrane to achieve concentrate equilibrium.

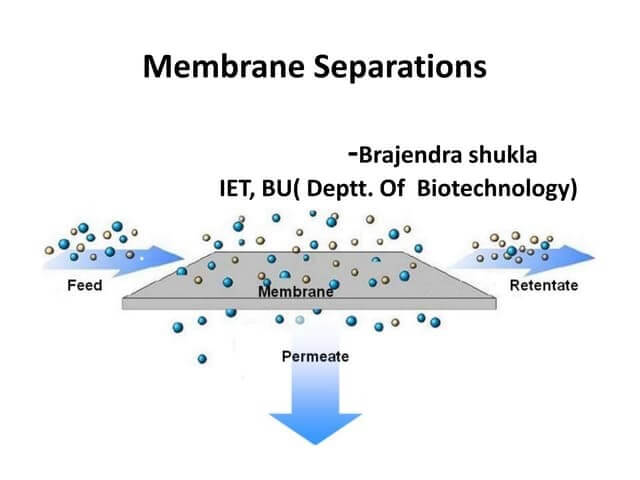

While RO and NF are both membrane technologies that use a semipermeable medium to remove certain ions and particles from a liquid stream, they can be distinguished based on the size of particulates that each is able to remove.
Comparatively, RO and NF are capable of removing finer contaminants than microfiltration and ultrafiltration, with applications including the removal of:
• hardness
• heavy metals
• nitrates
• organic macromolecules
• radionuclides
• sulfates
• total dissolved solids (TDS)

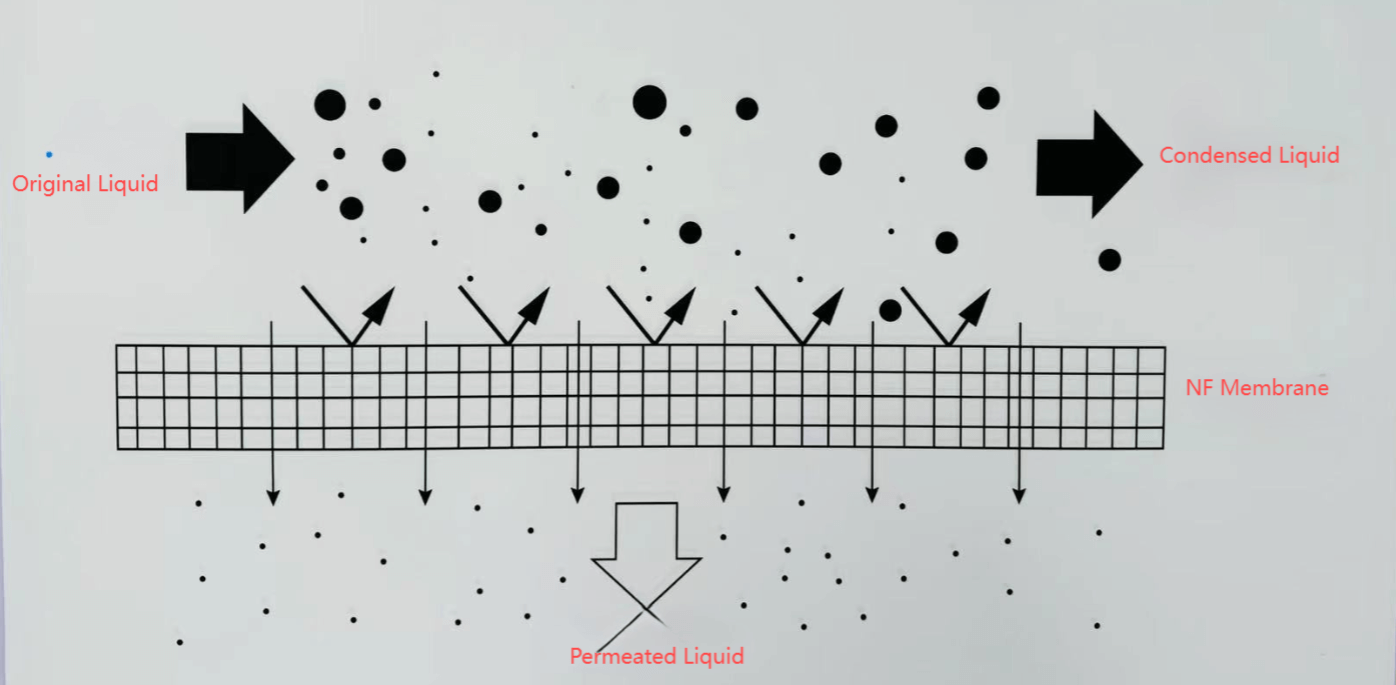

Nanofiltration, however, delivers slightly coarser filtration than RO, with the ability to remove particles as small as 0.002 to 0.005 μm in diameter, including pesticide compounds and organic macromolecules, while retaining minerals that RO would otherwise remove; nanofiltration membranes are capable of removing larger divalent ions such as calcium sulfate, while allowing smaller monovalent ions such as sodium chloride to pass through.
Because of its filtration properties, nanofiltration is often used to:
• concentrate and demineralize valuable byproducts, such as metals from wastewater
• generate potable drinking water
• remove nitrates
•remove pesticides from ground or surface water
• soften water

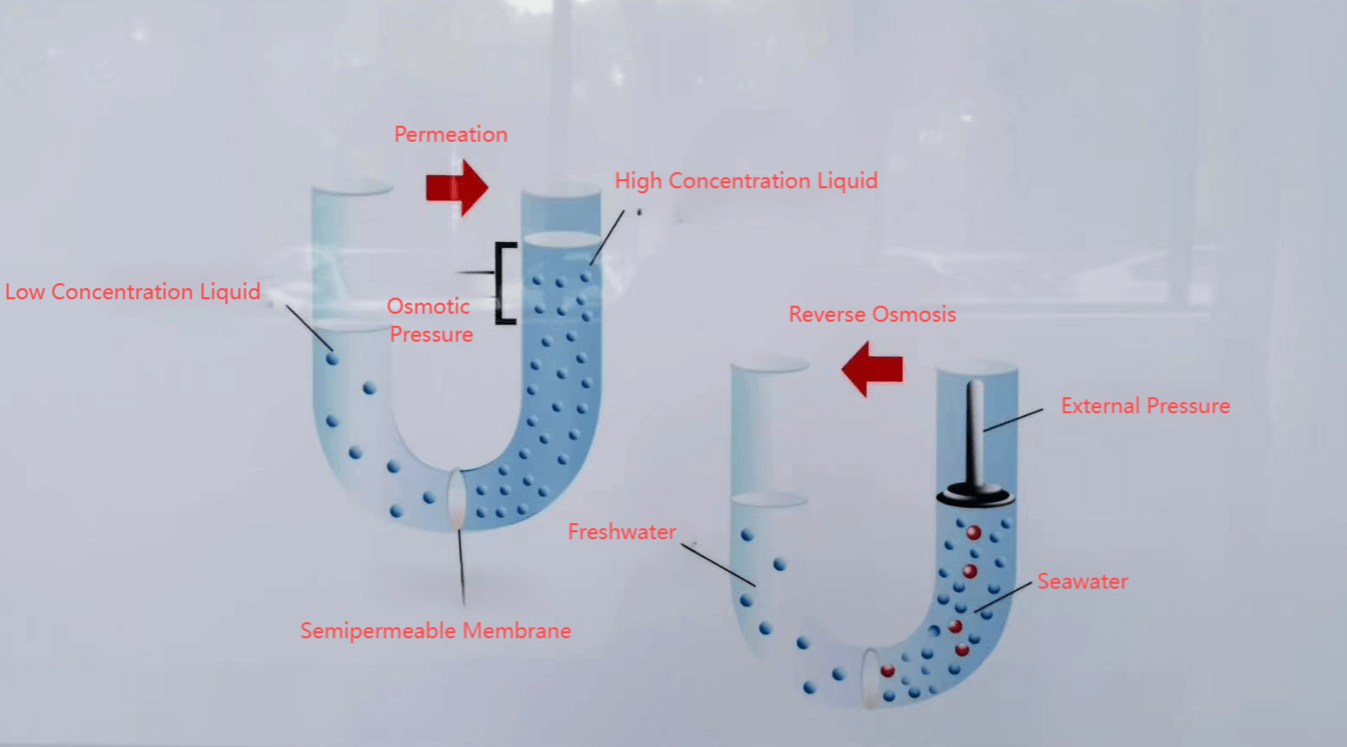

As mentioned above, RO is the reverse of osmosis, which is a passive, naturally occurring process that happens without the use of energy. For example, if you were to place a semipermeable membrane in a tub of water then add salt to one side, the water would naturally migrate from the side without salt to the side of the semipermeable membrane where you added the salt to dilute the concentrated, salt-contaminated liquid until the two sides were equally dilute. You would end up with one side having a higher level of water, creating what is known as osmotic pressure. RO and NF function similarly, the difference being what size particulates are being filtered out.
With RO/NF, since you are removing contaminants from a high-solute liquid stream, energy larger than the naturally occurring osmotic pressure must be applied to force the solvent from the (highly concentrated solution) through the semipermeable membrane in the opposite direction than what would occur naturally and without force. This causes the permeate to pass through the semipermeable membrane while trapping and filtering out any contaminates larger than the pure water that passes through to the lower-pressure side.
The pressure required to push the solvent through the semipermeable membrane depends on the concentrate of solids. The more concentrated the stream is, the more pressure you need to apply to overcome the osmotic pressure and force the permeate (filtered water) through. This leaves you with a highly concentrated reject stream that is either used or discarded, depending on the separation/concentration needs of the facility.
Implemented judiciously, RO and NF are effective strategies for recycling process liquids, reducing wastewater, recovering and concentrating dissolved materials, and generating potable water. If your industrial facility requires removal of dissolved materials at any point in the process stream, then you may be asking "Does my facility need a reverse osmosis or nanofiltration system? Then we will reply "We will help you understand key applications, benefits, and drawbacks of RO/NF so you can make an informed decision.
RO/NF might be right for your plant if:
RO/NF and conventional treatment processes are capable of removing many of the same contaminants, including hardness, heavy metals, organic molecules, radionuclides, and total dissolved solids(TDS).
Conventional separation processes are often complex multi-step systems that demand a variety of operational resources, which can include chemicals, energy costs, and space to accommodate their large footprint.
RO/NF, on the other hand, use relatively compact membrane elements to physically separate substances without the use of coagulant chemicals or energy-intensive heating and cooling.
As a result, RO/NF can be more efficient than conventional treatment systems and occupy a much smaller footprint. The downside is that RO/NF systems have historically commanded a steep initial investment, which has generally put them out of reach unless process conditions made them absolutely necessary. But that's starting to change, as growing environmental concerns and advancements in RO/NF membrane technology have recently led to wider adoption and lower upfront costs. As these trends continue, RO/NF is expected to become increasingly competitive with conventional treatment systems.
While choosing RO/NF over conventional treatment processes often involves weighing a variety of factors, there are some applications for which RO/NF is uniquely suited.
If your process demands removal of nitrates or sulfates, then RO or NF is likely your best bet. Nitrates and sulfates cannot be efficiently removed through conventional treatment methods, such as coagulation and filtration, thus, to ensure consistent permeate quality and process efficiency, RO/NF is generally the most practical choice.
Likewise, if your process demands removal of dissolved organics, RO/NF is often far more effective and efficient than alternative separation strategies for removal of organics such as pesticides, agricultural residuals and pharmaceuticals. For example, RO/NF can operate at room temperature, making it a far less energy- intensive process than distillation for dissolved organics removal.
Additionally, RO/NF delivers consistent permeate quality,while microfiltration (MF) or ultrafiltration (UF) must be paired with coagulation, and do not remove dissolved organics as reliably as RO/NF. Additionally, recent advancements in NF membrane technology have resulted in better resistance to organic solvents, which has spurred the adoption of NF for exchange, separation, and recovery of organic solvents and catalysts.
Hardness, or the presence of calcium, magnesium, and other metal cations in water, often leads to scaling in pipes, cooling towers, or equipment, which can negatively impact the efficiency of your process and drive up operational and maintenance costs. While many facilities turn to lime softening orion exchange technology for water softening, RO/NF is capable of removing problematic divalent ions without the maintenance or waste that other softening strategies can entail.
For some applications, RO/NF system maintenance is far more cost-effective than having to regenerate ion exchange resins or dispose of concentrated brine waste.
RO/NF membrane or elements are used for a wide variety of specialized industrial applications. Some examples of typical RO/NF industrial applications include as follows:
RO/NF membrane or elements are used in the power industry for reliable removal of contaminants and minerals from process streams in order to prolong equipment life, increase cooling tower cycles, and minimize water consumption by facilitating reuse.
In the refinery industry, RO/NF membrane or elements are frequently deployed for recovery of valuable materials, such as lithium. While NF is frequently thought of as a means of treating aqueous solutions, the technology can be effectively applied for separation of other processor waste streams as well, including one petroleum plant’s large-scale use of NF for oil dewaxing.
RO/NF membrane or elements support a variety of specialized chemical processes too numerous to list. RO/NF are typically applied in chemical production for processes that demand consistent quality in the permeate stream. NF in particular is able to process large volumes of liquid relatively quickly.
RO membrane elements is used extensively in the oil and gas industry for potable water generation in areas where drinking water is scarce, such as deserts and off-shore oil rigs.
RO/NF membrane elements are frequently used within the mining and metals industry for treatment and recycling of waste streams generated by mining operations, metal finishing and plating, as well as the recovery of valuable materials.
Typical applications of RO within the food and beverage industry include the treatment of process water for reuse, and the reduction of biochemical oxygen demand (BOD) in wastewater prior to discharge. The food and beverage industry relies on NF for a variety of specialized applications, including the concentration of sugar and dextrose syrup, the production of alternative sweeteners, degumming of solutions inedible oil processing, and the concentration of whey proteins in dairy industry.
RO is used extensively at desalination plants. While RO delivers the purest water possible, NF was developed for removal of larger molecules while allowing desirable minerals to flow through. Increasingly, NF is being used to support a variety of water purification needs, such as removal of residual disinfectants from drinking water.
